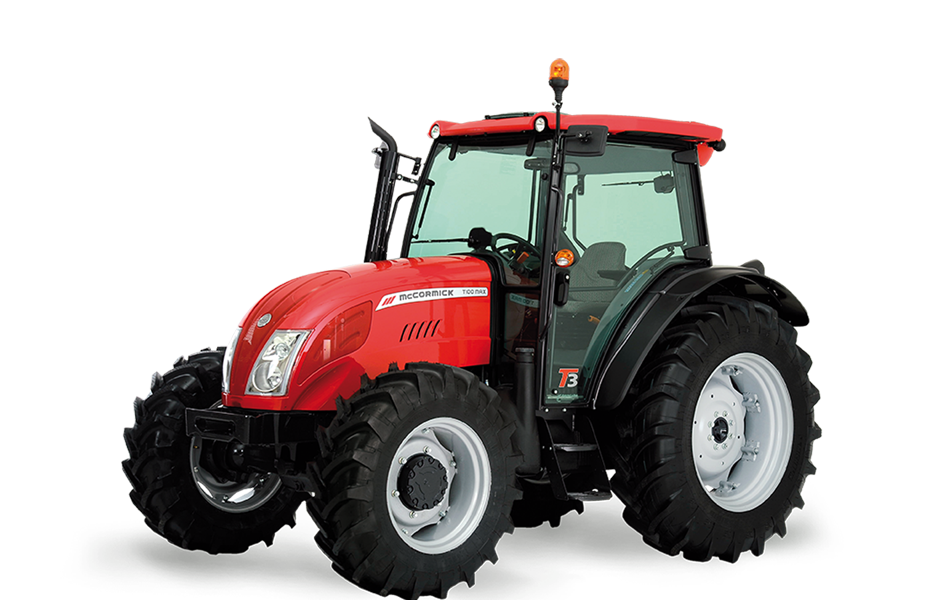

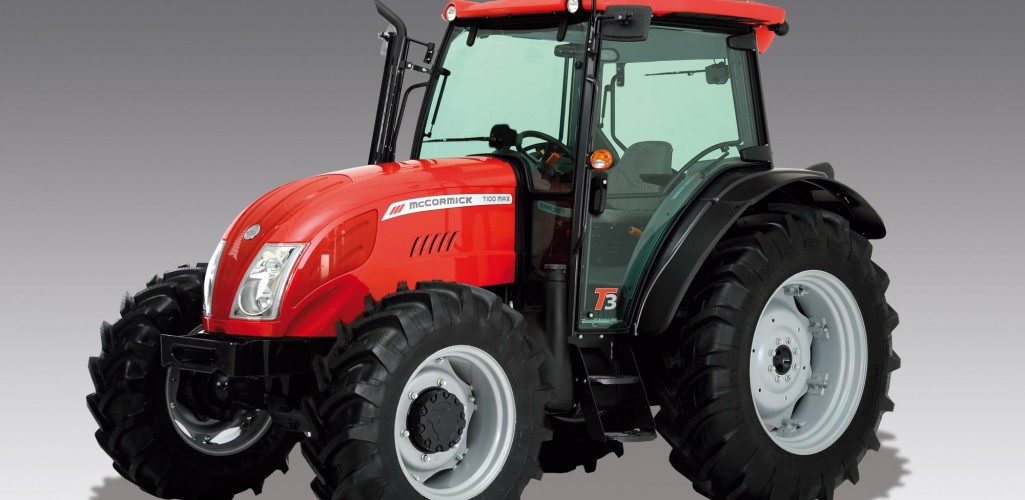

The T-MAX series

Building on the best features from the C-Max and X60 models, the T-Max range offers McCormick's state-of-the-art technology in a tractor that combines outstanding performance and reliability with unbeatable comfort and ergonomics. Available in both platform and cab versions, the new T-Max series sports a restyled hood and new taillights reflecting the brand’s distinctive family styling. The range features as standard a Speed Four modular transmission with four synchronized gears and three mechanical speed ranges and a hydraulic wet multi-disc PTO clutch. The entry level 12+12 speed transmission is available in both 30 km/h and 40 km/h versions. An intermediate version with synchro shuttle and overdrive transmission (Synchro Shuttle version) provides 24+12 speeds. The T-Max series comprises four models, all meeting the Tier 3 emission standards: a turbocharged model, the 90, and three turbo-aftercooled models, the 100, 110 and 115.

A winning combination

Engine

4,4/ 4

Power

83, 92.5, 102, 110.2

Transmission

Mechanical Reverse Shuttle and Hydraulic Reverse Shuttle

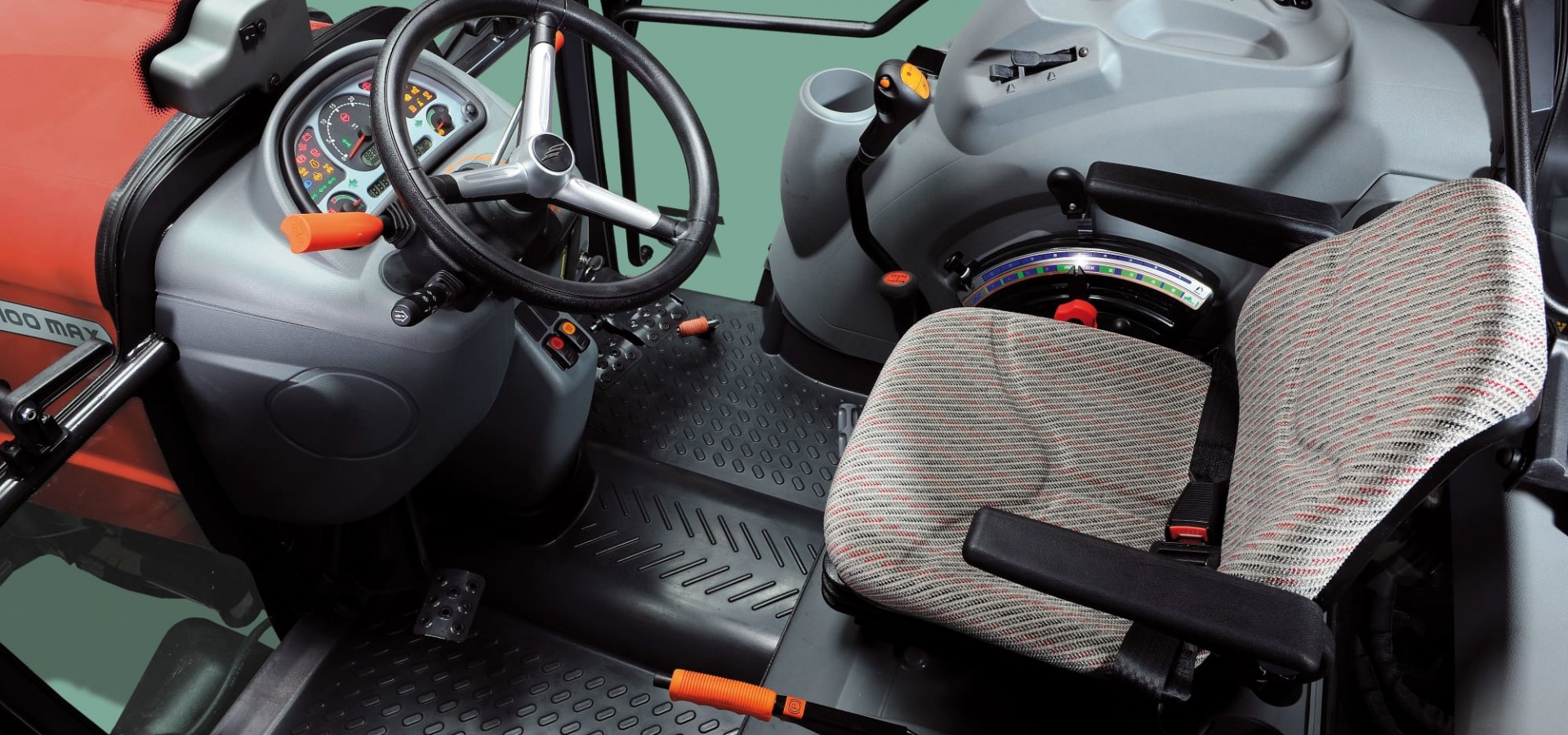

“TOTAL VIEW” cab

The most outstanding feature of the T-MAX series tractors cab is the all-round visibility of the “total view” cab provided by the allglass side doors hinged onto the rear post. The interiors, stylish and accurate, have been executed by making large use of the composite materials of modern automotive design. All controls are arranged in a comfortable and intuitive position, according to current ergonomic standards. The heating/ventilation and air-conditioning system is installed on the cab roof with considerable benefits for the driver in terms of comfort, safety and health. The ventilation system is integrated by two filters designed to purify the air inside the cab. The roof features a fixed glazed hatch with sunshade, particularly useful when working with front loaders, and four lights providing great visibility during night work. Natural ventilation is ensured by the openable front and rear windscreens.

Perkins 1104D engines

The T-Max series comprises four models, all meeting the Tier 3 emission standards: a turbocharged model, the 90, and three turbo-aftercooled models, the 100, 110 and 115.

T90 MAX (T3)
Syncro and
PowerShuttle
T100 MAX (T3)
Syncro and
PowerShuttle
T110 MAX (T3)
Syncro and
PowerShuttle
T115 MAX (T3)
Syncro and
PowerShuttle
PERKINS TIER 3 DIRECT INJECTION
ENGINE
1104D-44T 1104D-44TA 1104D-44TA 1104D-44TA
MAX POWER ISO
HP/KW
83/61 92,5/68  102/75 110,2/81
MAX TORQUE
NM
352 393 416 410
DISPLACEMENT [CM3] 4400/4 4400/4 4400/4 4400/4
net PTO power (ISO ) hp /kW 70,5/52 79/58 86,5/63,5 93,5/68,5

Synchro Shuttle and Power Shuttle versions

The range features as standard a Speed Four modular transmission with four synchronized gears and three mechanical speed ranges and a hydraulic wet multi-disc PTO clutch. The entry level 12+12 speed transmission is available in both 30 km/h and 40 km/h versions. An intermediate version with synchro shuttle and overdrive transmission (Synchro Shuttle version) provides 24+12 speeds. A brand new feature is the hydraulic power shuttle combined with a T-Tronic three-shift option (H-M-L) which triples the gears of the base transmission providing in total 36 forward and 12 reverse speeds (Power Shuttle version). A creep speed unit is available as an option on both the Synchro Shuttle 2WD and Power Shuttle versions. The Power Shuttle version is equipped with a de-clutch control allowing the operator to change gear by simply pressing the button on the gear lever without using the clutch pedal. The de-clutch system is operated by an electronic control unit which also controls the power shuttle, the T- Tronic transmission and the PTO. The PTO offers three speeds – 540, 750 (540 Eco) and 1000 rpm, to suit the different versions. The mechanical power lift (electronic power lift only on the Power Shuttle version) is equipped with draft control function on the lower links.

Hydraulic circuit

The new hydraulic circuit provides a maximum total flow of 82 l/min. The system features up to 4 auxiliary valves with lever controls integrated in the console at the driver’s right-hand side. Two of them are controlled by joystick for front loader operations, while the other two are operated by a standard lever, thereby providing extra versatility and productivity when working with farm implements.

DIMENSIONS AND WEIGHTS

  T 90 MAX (T3)
Syncro e Power Shuttle
T 100MAX (T3)
Syncro e Power Shuttle
T 110MAX (T3)
Syncro e Power Shuttle
T 115MAX (T3)
Syncro e Power Shuttle
REAR TYRES 480/70R34 480/70R34 480/70R34 480/70R34
TOTAL LENGHT WITH BALLAST MM 4160 4160 4160 4160
MIN. WIDTH MM 2110 2110 2110 2110
WHEELBASE 2RM/4RM 2365/2340 2365/2340 2365/2340 2365/2340
HEIGHT OVER CAB 2563 2563 2563 2563
HEIGHT TO SAFETY FRAME 2560 2560 2560 2560
GROUND CLEARANCE 475 475 475 475
TOTAL WEIGHT WITHOUT BALLAST+ (150 CAB) 3650 3650 3650 3650
