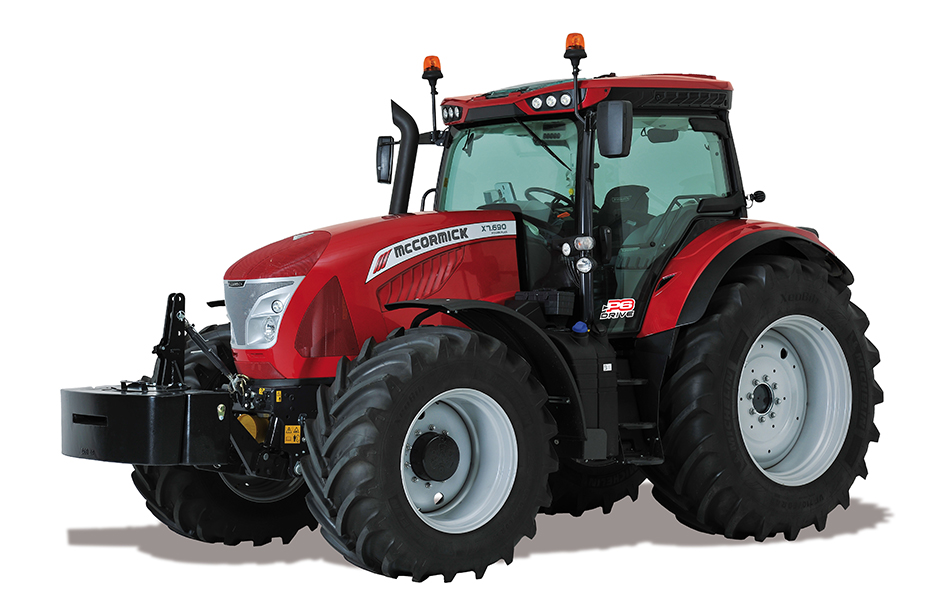

McCormick X7.6 P6-Drive Tier3

650 - 660 - 670 - 680 - 690

Main features

CYLINDERS
6
POWER
166, 181, 192, 211, 225
TRANSMISSION
Power Shift

McCormick X7.6 TIER3 superior design for maximum comfort and productivity

McCormick X7.6 Tier 3: equipped with the 6.7-litre ‘Betapower Fuel Efficiency’ 24-valve, six-cylinder turbo engines with Common Rail injection system.. There are five models: X7.650, X7.660, X7.670, X7.680 and X7.690 with 166 HP to 225 HP power ratings. It is also equipped with an engine brake pedal to make driving smoother during transport work. It increases braking performance by acting on the exhaust gases. The transmission called P6-Drive is a Powershift type. The P6-Drive transmission includes five robotically-activated ranges and comes with as standard, six Powershift speed gears governed by a dedicated electronic controller. Once the operator has chosen the engine speed, the Smart APS (Smart Autopowershift) system allows the P6-Drive transmission to automatically select the most suitable range and speed gear. Another new feature is the Stop&Action system which integrates the declutch function into the brake pedal, allowing the P6-Drive transmission to provide a smoother ride. Increased to 160 l/min, the flow rate received by the 9,300 kg capacity rear hitch and the control valves, these ones available up to seven. In addition to the exclusive Premium versions with their highlevel specifications, there are Efficient models which share the same top quality transmissions and engines but come in with entry level features. Governed by the Data Screen Manager (DSM) system, the software has also been upgraded and now includes additional functions: a rear view camera to improve visibility over implements hitched behind the tractor and provide more information in the transport mode, advanced headland management functions and additional information from the tractor's onboard computer. A new Semi-Active Cab Suspension with electronic controller able to modify shock absorber firmness to suit changing terrain conditions has been introduced to enhance operator comfort to an even greater extent and improve the quality of life and working conditions in the vehicle.



“BETAPOWER” TIER 3 ENGINES: MORE POWER, LESS FUEL

The four models of the McCormick X7.6 series are powered by the new 6.7-liter “Betapower” 24-valve, 6-cylinder turbo engines with Common Rail injection system which provide power ratings from 165 to 225 Hp. The new “Betapower” engines also feature the “Power Plus” system which automatically delivers extra power and torque to cope with demanding PTO and transport work. The tilt-up hood opens wide to provide easy access to the engine compartment for routine service and maintenance. In addition, a special cooling package design allows each of the engine coolers to be separated for easy cleaning.

X7.650 T3X7.660 T3X7.670 T3X7.680 T3X7.690 T3
TIER 3BETAPOWERBETAPOWERBETAPOWERBETAPOWERBETAPOWER
MAX. ENGINE POWER WITH POWER PLUS AT 1900 RPM (ISO RATING) hp /kW166/122181/133192/142211/155 225/166
RATED ENGINE POWER WITH POWER  PLUS AT 2200 RPM (ISO RATING)  HP/KW151/111 165/121179/132192/141 205/151
MAX. TORQUE (WITH POWER PLUS)   MM632 (676)694 (738)758 ( 800)800 (860) 850 (897)
DISPLACEMENT (CM3) / NO. OF CYLINDERS/ NO. OF VALVES6728 / 6 / 246728 / 6 / 246728 / 6 / 246728 / 6 / 24 6728 / 6 / 24
FUEL TANK CAPACITY litres320320320320 320



P6-Drive transmission

The transmission called P6-Drive is a Powershift type. The P6-Drive transmission includes five robotically-activated ranges and comes with as standard, six Powershift speed gears governed by a dedicated electronic controller. Once the operator has chosen the engine speed, the Smart APS (Smart Autopowershift) system allows the P6-Drive transmission to automatically select the most suitable range and speed gear.

Semi-Active Cab Suspension

A new Semi-Active Cab Suspension with electronic controller able to modify shock absorber firmness to suit changing terrain conditions has been introduced to enhance operator comfort to an even greater extent and improve the quality of life and working conditions in the vehicle.

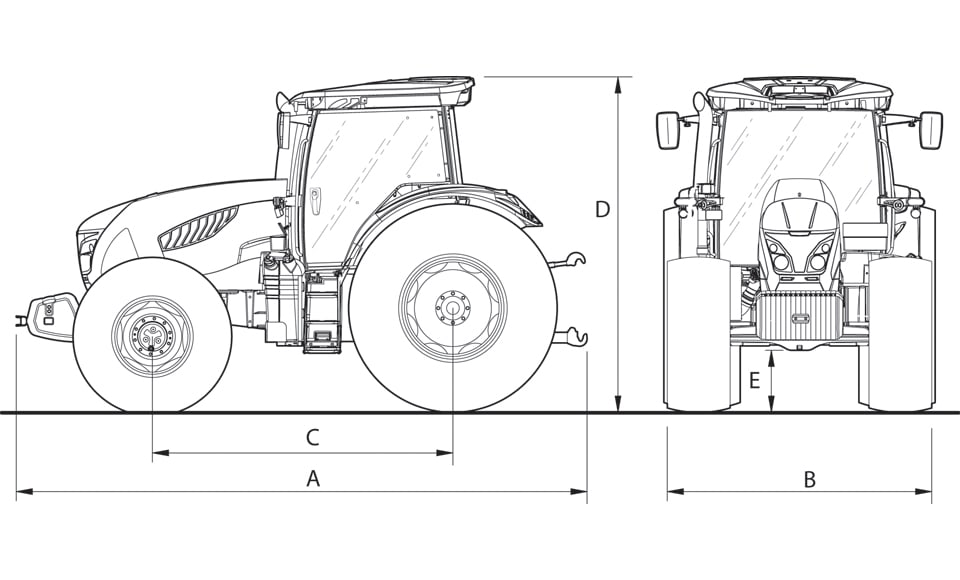

dimensions and weights

X7.650 T3X7.660 T3X7.670 T3X7.680 T3X7.690 T3
FRONT TYRES540/65R28540/65R28540/65R28540/65R30540/65R30
REAR TYRES650/65R38650/65R38650/65R42650/65R42650/65R42
D- HEIGHT OVER CAB MM29202920305530553055
C- WHEELBASE MM27502750282028202820
A- MAX. LENGTH (WITH BALLAST WEIGHTS)    MM52605260526052605260
E- GROUND CLEARANCE 4WD MM485485550550550
B- MIN. WIDTH  MM24302430243024302430
TOTAL WEIGHT WITHOUT BALLAST WEIGHTS KG70107010721072107210
