A-MAX

A-MAX

The New incoming

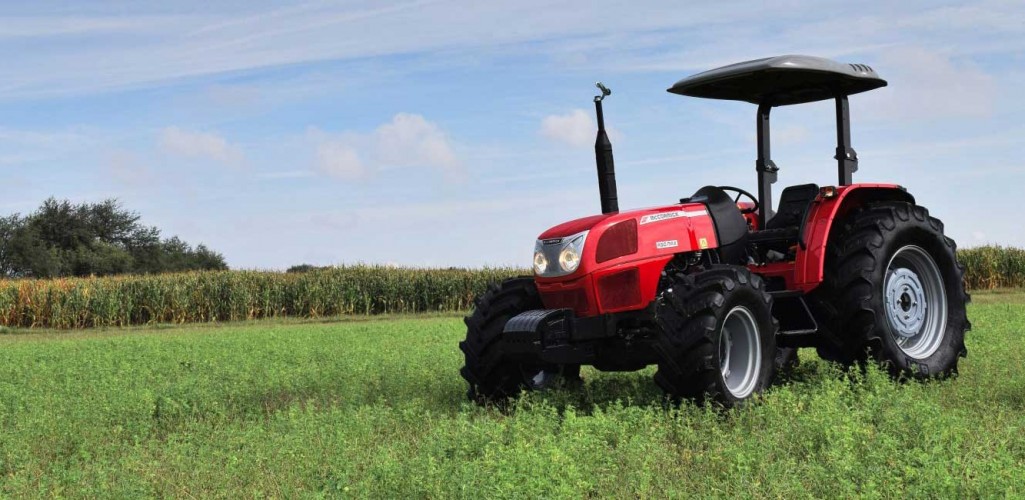

McCormick A-Max is the NEW incoming in the medium-low power range product. 4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP with a very good choice of specifications. Strength, reliability and versatility are the key points in order to realize high performance in several farming operations like: soilpreparation, grassmowing, baling, orchard, loading and transport.

Very good choice of specifications

Engine

4,4/ 4

Power

68.2, 74.1, 83

Transmission

Mechanical Reverse Shuttle + Speed Four

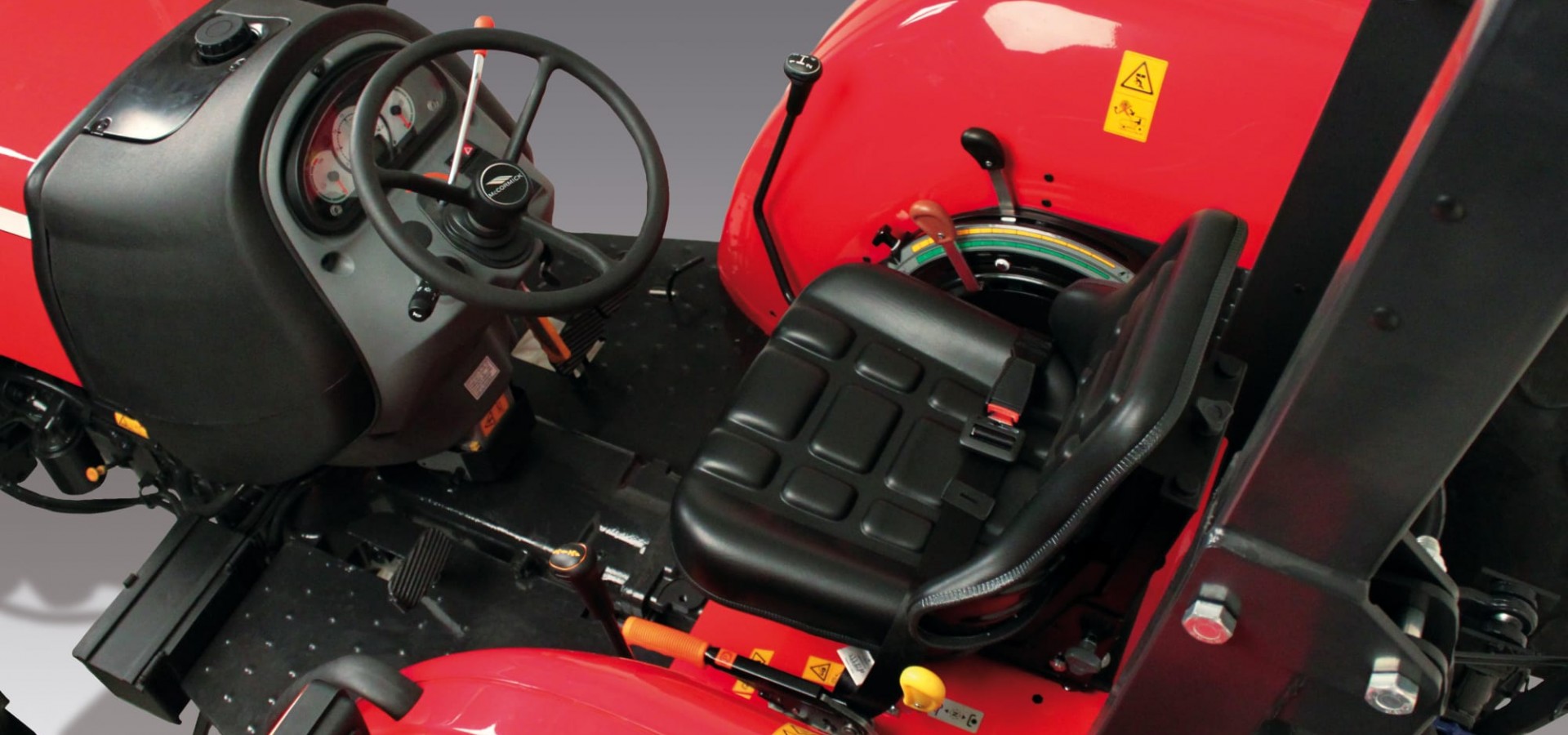

Platform

Tiltablesteering adjuster

Ergonomic levers position

Safety frame locked
Good rear mirror visibility
Rear mirror support out of operator area

Levers close to seat for friendly use

Perkins 4 CYL 4,4 litres Tier2 and Tier3

4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP.

A75 MAX A80 MAX A90 MAX
Perkins Engine 1104C-44 (Tier2) 1104D-44 (Tier3) 1104D-44T (Tier3)
Max Power (ISO) hp/kW 68,2/58,2 74,1 / 54,5 82 / 60,3
Rated speed  Rpm 2200 2200 2200
Max. Torque    Nm 273 292 352
Max. Torque speed  Rpm 1400 1400 1400
Bore/Stroke     mm 105/127 105/127 105/127
Displacement cm3 4400 4400 4400
Nr. of cylinders / turbo 4 / NO 4 / NO 4 / YES
Compression ratio 18,2:1 18,2:1 18,2:1
Fuel tank capacity STD+OPT  Lt 65 65 65



Mechanical transmission made in Italy

Synchro shuttle  4 gears / 3 ranges

12 + 12 in base, 16 + 16 with creeper (Option)

Available working speeds:

5 speeds between 4 and 12 [km/h]

Creeper min speed 360 [m/h] (Option)

Hydraulic System

Tandem pumps
42 for service [litres/min]
20 for steering [litres/min]
1 spool valve in base
Max 2 spool valves (1 option)

Dimensions and weights

A75 MAX A80 MAX A90 MAX
Total lenght whitout / whit front weights  mm 3742 / 4145 3742 / 4145 3742 / 4145
Wheelbase (4WD)        mm 2130 2130 2130
Height to safety frame  mm 2391 / 2441 2391 / 2441 2391 / 2441
Ground clearance  mm 318 / 368 318 / 368 318 / 368
Minimum width (Tyres 14.9 R28) mm 1645 1645 1645
Weight 4WD (Whithout Ballast)    Kg 2860 2860 2860
