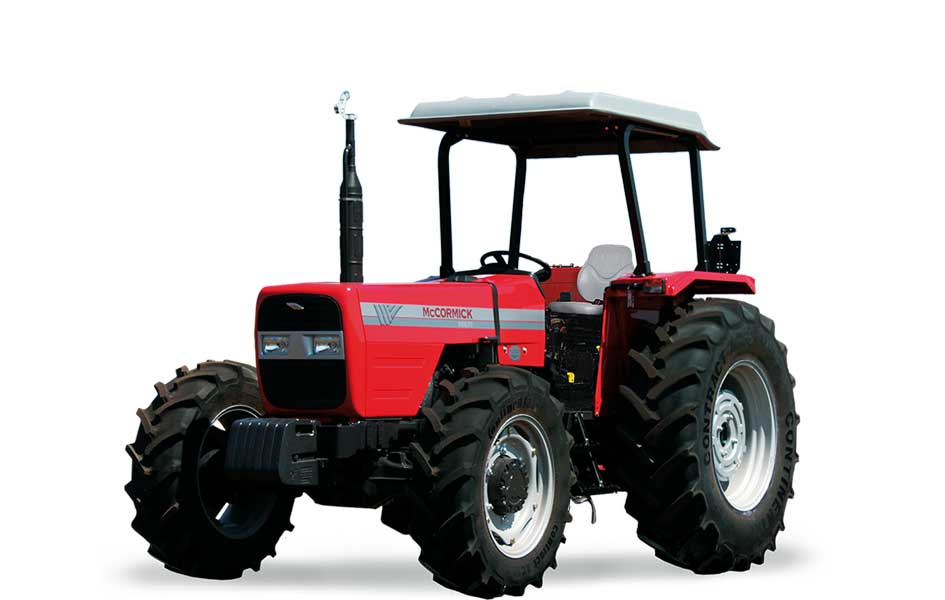

A timeless tractor

The MB Series tractors with either two or four-wheel drive are the warhorses of McCormick’s stable: never tamed and always raring to go, they are ideally suited for allround use. Featuring a simple, economy–driven design, the MB Series tractors deliver excellent performance and functionality for maximum reliability and extended life.

Ideally suited for allround use

Engine

4,4/ 4

Power

75 81.6 83.6

Transmission

BASE GEARBOX 12FWD + 4REV

Ample and comfortable driver’s seat

The driver’s seat is mounted on an ample platform and equipped with a fully adjustable sprung seat to maximise the driving comfort.The ergonomically-arranged controls make the operator’s work easier and more comfortable. The forward tilting hood gives easy access to the engine for maintenance operations. The four-post ROPS can be equipped with a sun canopy. In addition to this, the tractor can be supplied with a cab as an option.

Engines

The MB Series tractors (75 and 85 Tier2 models and 85 model Tier0) are equipped with the Perkins 1104C 4-cylinder engines andPerkins 1104A series “TIER 0”. These engines deliver 75, 81.6 and 83.6 HP (ISO) respectively, while offering high torque backup, improved fuel economy, low noise and reduced emissions. The forward tilting hood provides easy access to the engine for routine service and maintenance.

Three modular transmission options

The base transmission features a four-speed, three-range gearbox with reverse which provides 12FWD+4REV speeds. The second option includes a reverse shuttle which allows the driver to reverse all speeds of the base gearbox thus obtaining 12FWD+12REV speeds. The third option with creep speed unit provides a total of 24FWD+12REV speeds. The centrally-located reverse shuttle lever allows the driver to reverse all gears and engage the creep speed option with maximum comfort.
