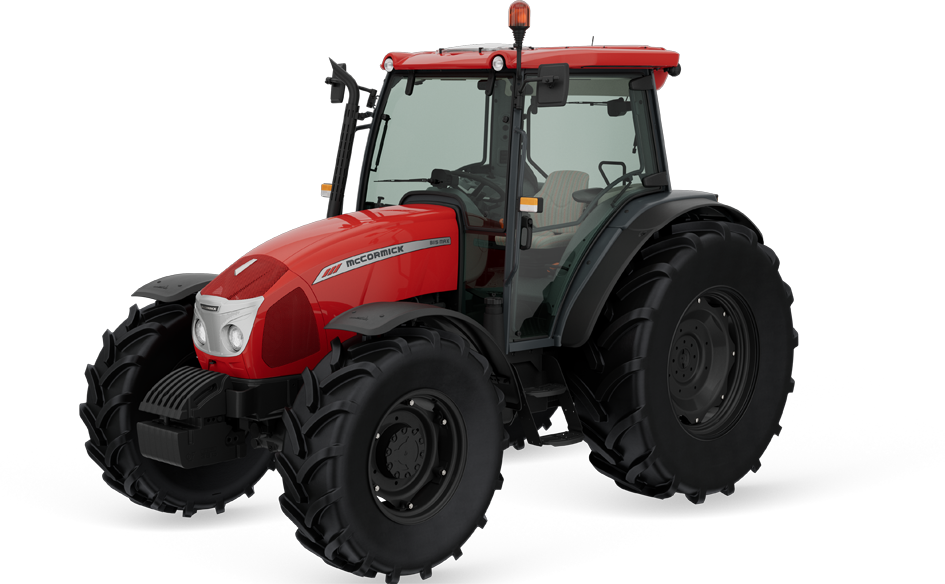

B-MAX CAB
The B-MAX Series
Renewed McCormick B-MAX range, designed for LRC (Low Regulated Countries) markets. The relentless research and development activity has allowed the Italian industrial group based in Fabbrico (Reggio Emilia) to take a significant step forward in the production of tractors that are increasingly at the forefront in terms of innovation, guaranteeing new functions and performance levels, while at the same time improving the design, with European style.
A whole level of reliability and functionality
Engine
4,4/ 4
Power
82 93 102 107 111
Transmission
Base Gearbox 12FWD + 4REV with synchro shuttle
The standard lifting capacity ranges from 3,000 to 4,500 kilograms (with additional assist cylinders) in the low power versions, while it reaches 5,080 kilograms in the high-power models (115, 110 and 120). The independent PTO has 2 speeds, 540/1000 rpm or 540/540E, with Ground Speed PTO available as an option. The front axles are available in 2-wheel and 4-wheel drive in low power versions (with optional paddy field seals) and only in 4-wheel drive (with optional Hydralock system) for higher powers. The rear differential lock is available with mechanical or electro-hydraulic engagement.
New Cab
Special attention has been paid to the design, with an updated look that echoes the modern Landini family feeling. Improvements in the cab include excellent soundproofing and suspended brake/clutch pedals that reduce the amount of dirt and vibrations entering the cab, improving operator comfort. The main novelty for the operator's area is the introduction of the reverse power shuttle control lever and a new dashboard.
Perkins engine
The engine powering the new range is the 4.4 L Perkins 1104, which was already acclaimed for its extreme reliability and available in Tier 0 and Tier 3 exhaust emission ratings. Engine power has also increased, from the previous 75hp - 102hp range to the current 82hp - 111hp.
| B90 MAX | B100 MAX | B110 MAX | B115 MAX | B120 MAX | |
|---|---|---|---|---|---|
| Max power (97/68/EC - ISO TR 14396) hp/kW | 82/60 | 93/68 | 102/75 | 107/79 | 111/81 |
| Rated Engine Speed | 2200 | 2200 | 2200 | 2200 | 2200 |
| Max Torque at 1400 rpm | 352 | 393 | 416 | 400 | 416 |
| Emission Stage - without after-treatment system | Tier3 | Tier3 | Tier3 | Tier0 | Tier3 |
| Cylinders / Displacement / Valves | 4 / 4.4 l / 8V | 4 / 4.4 l / 8V | 4 / 4.4 l / 8V | 4 / 4.4 l / 8V |
4 / 4.4 l / 8V
|
The transmissions allow maximum operability in all working conditions
The modular transmission provides, as standard, 3 ranges and 4 speeds in each range, resulting in a total 12 forward and 4 reverse speeds and comes in three versions for a maximum speed of 30 km per hour. The second option provides 12 forward and 12 reverse speeds with mechanical reverse shuttle. A creep speed option is available on request to achieve 24 forward and 12 reverse speeds.
Hydraulic circuit
The hydraulic flow rate to the services (hitch and rear spool valves) is 54 litres/min, while as much as 30 litres/min are available at the steering pump for the version with hydraulic reverse shuttle (24 l/min for mechanical reverse shuttle). An optimised oil filtration system ensures circuit maintenance. Cab versions offer 2 to 4 rear spool valves.
DIMENSIONS AND WEIGHTS
| B90 MAX | B100 MAX | B110 MAX | B115 MAX | B120 MAX | |
|---|---|---|---|---|---|
| Wheelbase mm | 2224 - 2316 (2WD - 4WD) | 2224 - 2316 (2WD - 4WD) | 2340 (4WD) | 2340 (4WD) | 2340 (4WD) |
| Max height over FOPS/cab without beacon lights mm | 2580 - measured with tyres IR 725 | 2580 - measured with tyres IR 725 | 2615 - measured with tyres IR 750 | 2615 - measured with tyres IR 750 | 2615 - measured with tyres IR 750 |
| Shipping weight - measured with average specs Kg | 3450 | 3450 | 3450 | 33450 | 3450 |
| Gross vehicle weight Kg | 5350 | 5350 | 5350 | 5350 | 5350 |
| Max rear tyre size - (Index Radius -IR) mm | 480/70 R34 (2WD - IR 750) / 13.6 R38 (4WD - IR 750) | 480/70 R34 (2WD - IR 750) / 13.6 R38 (4WD - IR 750) | 18.4 R34 (4WD - IR 775) | 18.4 R34 (4WD - IR 775) | 18.4 R34 (4WD - IR 775) |
