B-MAX 90/100/110
The B-MAX T3 Series
Engine
4400/ 4
Power
61, 68, 75
Transmission
Rear Mechanical Diff. Lock
Simple, functional, economic
The new B-Max Series T3 tractor family from McCormick has been designed to replace the old one series. Supplied in both two- and four-wheel drive versions, this low-cost tractor combines a simple design with excellent performance and functionality. Three models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B-Max 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.
Perkins 1104A series engines
B-Max - 90/100/110
Direct Injection Diesel Engine = 1104D-44T
Maximum Power ISO (kW) = 61-75
Net PTO Power ISO (kW) = 58-67
Rated Speed (rpm) = 2200
Maximum Torque (Nm) = 352-416
Maximum Torque Speed (rpm) = 1400
Mechanical Fuel Injection = STD
Turbo, Inter Cooled = STD
Bore / Stroke = 105/127
Water Cooling = STD
Transmission
Basic Gearbox = Shuttle 12 FWD + 12 REV = STD
Rear Mechanical Diff. Lock = STD
Hydraulic System
Position, Draft and Control Functions = STD
Lifting capacity with 2 cylinders = 3700
Hydraulic pump delivery + Steering = 53+28

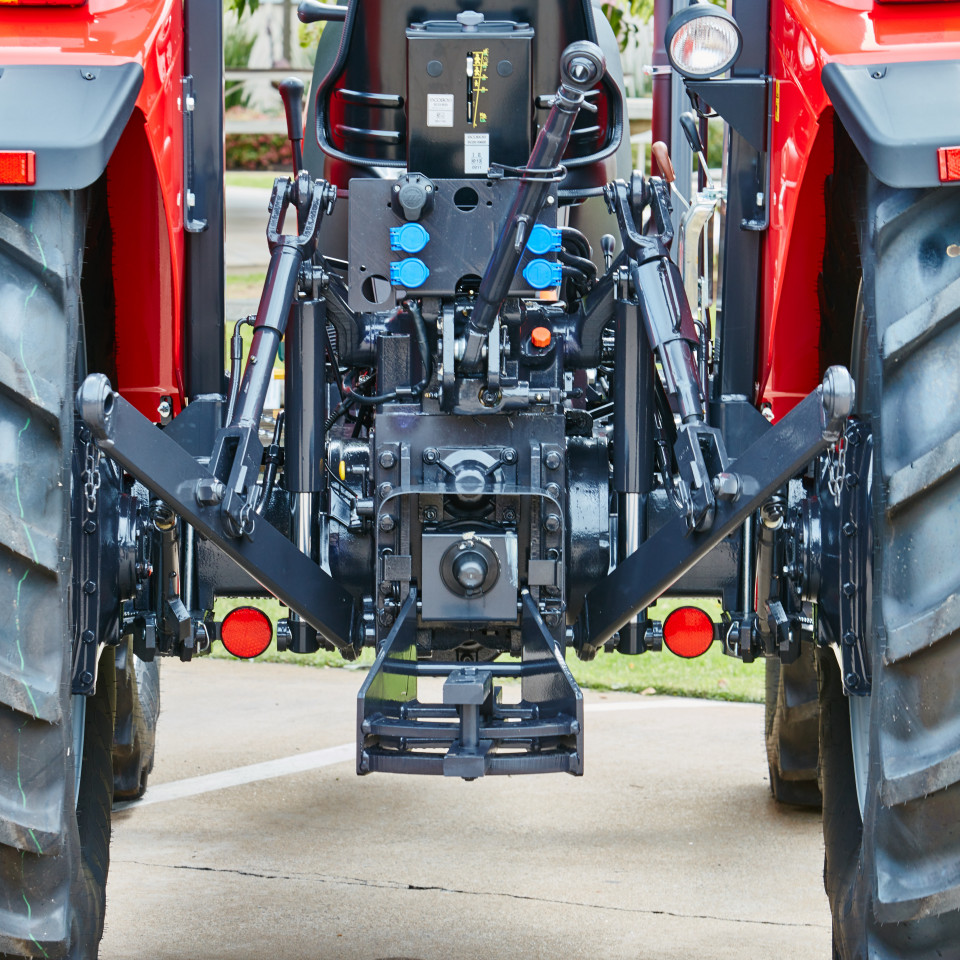

3-Point linkage = STD
Auxiliary Hydraulic Valves = STD
WEIGHTS & DIMENSIONS
| B-Max 90 |
B-Max 100 |
B-Max 110 |
|
|---|---|---|---|
| Length Without Ballast (mm) | 4111 | 4135 | 4135 |
| Height (mm) | 2560 | 2610 | 2610 |
| Height Over Safety Frame (mm) | 3150 | 3150 | 3150 |
| Maximum Ground Clearance (mm) | 390 | 400 | 400 |
| Weight Without Ballast 4WD (kg) | 3300 | 3300 | 3300 |
