With the engine located within a chassis and the rugged front axle with independent wheels, the X7.6 is the tractor that transfers more power to the ground in its class. The X7.6 offers outstanding traction and excellent manoeuvrability ensuring optimum grip and stability for superior driving comfort in the field and on the road. The front axle is equipped with full hydraulic locking differential and electro hydraulic four-wheel drive engagement ensuring maximum efficiency and safety on all terrains. High capacity wet multi-disc rear axle brakes ensure safe controlled stopping power. Also when braking, the fourwheel drive engages automatically, which in turn brakes the front axle for efficient braking on all four wheels. All X7.6 tractors are equipped with brake power boosting system to reduce the effort required by the operator while improving driving accuracy.
VT-Drive continuous variable transmission
A new Semi-Active Cab Suspension with electronic controller able to modify shock absorber firmness to suit changing terrain conditions has been introduced to enhance operator comfort to an even greater extent and improve the quality of life and working conditions in the vehicle.
The Premiere Cab is a new-concept four-post design with rear hinged doors that provides unobstructed visibility in all directions giving the driver full view of blind spots without the need to change position. The cab is pressurized to keep a clean, dust-free environment. A highly-efficient sound insulation system maintains an in-cab noise level of only 70 dB for maximum comfort of operation. The optional electrohydraulic semi-active cab suspension system further enhances the operator comfort. Wide, well-spaced access steps allow the operator to easily get in and out of the cab, while the buddy seat neatly folds away making for easier and safer access. The cab interior features an automotive-style fit and finish with easy-clean soft-touch materials. The instrument panel and the steering wheel can be electrically adjusted in tilt and depth to suit the driver’s needs. The alcantara swivel seat with dynamic air suspension system and fully automatic height adjustment features both heating and ventilation for ultimate driving comfort. The multifunction righthand armrest accommodates the main tractor controls arranged in a simple and logical manner. The ergonomically-designed multifunction controller provides easy and intuitive control of key tractor functions. Integrated into the armrest is a DSM 12-inch touch screen monitor with simple tablet-like graphics that allows the operator to quickly manage and adjust the tractor operating parameters. The new Premier Cab also offers additional new functions, such as front and rear view cameras and the MyHMF intuitive menu for automatic management of headland operations. The Premiere Cab’s standard equipment includes a refrigerated in-cab storage compartment and bottle holder, 12V sockets for charging mobile devices, an internal mirror and an opening transparent roof hatch providing extra visibility for loader operations. Integrated into the cab roof, a highly efficient automatic climate control maintains the desired cab temperature whatever the outdoor weather conditions.

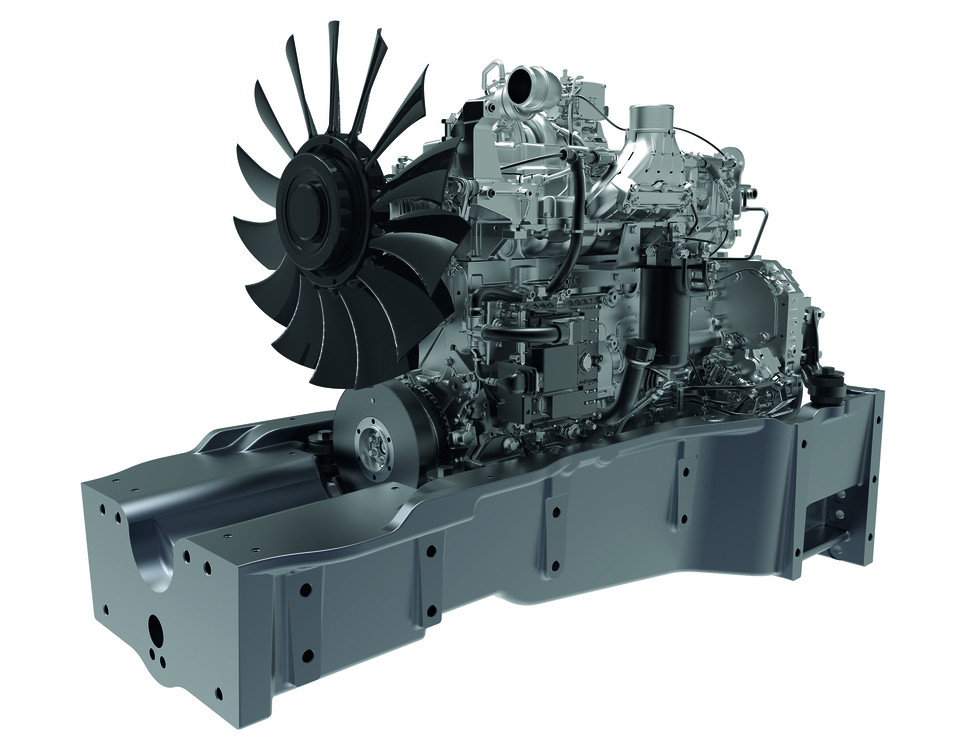

The X7.6 tractor range is powered by the new Beta Power Fuel Efficiency 6.7L six-cylinder turbo engines with multivalve technology and electronic common rail injection system. The engines are located within a rugged chassis which helps reduce noise and vibration levels within the cab. The engine cooling is ensured by an electronically-controlled viscotronic fan, which is standard on the entire range. This solution improves cooling efficiency while reducing fuel consumption and noise levels. The new Beta Power Fuel Efficiency powering the X7.6 series are cuttingedge engines designed to offer farmers simplicity and functionality without compromising on performance, reliability and durability. They feature the Power Plus system which electronically adjusts the engine power to respond to varying load conditions. During transport applications or PTO operations, the Power Plus automatically delivers additional 10 hp to handle tough conditions and heavy loads while maintaining speed and productivity. With the Power Plus the X7.6 tractors will deliver maximum powers of 210, 225 and 240 hp.
|FPT Beta Power Fuel Efficiency
|NOMINAL POWER WITH POWER PLUS (97/68 CE - ISO TR 14396) CV / KW
|MAXIMUM POWER WITH POWER PLUS (97/68 CE - ISO TR 14396) CV / kW
|MAXIMUM TORQUE (WITH POWER PLUS) - ENGINE SPEED AT 1400 rpm Nm
|TORQUE RESERVE (WITH POWER PLUS)
|DISPLACEMENT / N ° OF CYLINDERS / N ° V VALVES
|ADBLUE TANK CAPACITY L
|FUEL TANK CAPACITY L
A powerful and versatile tractor range like the X7.6 must be able to handle all kinds of tasks and field conditions. The VT-Drive continuous variable transmission is designed to ensure all the versatility and flexibility required by modern agriculture. Combining a powerful engine with a VT-Drive four-stage continuous variable transmission featuring four planetary gear trains with oil-cooled clutches, the X7.6 ensures fast acceleration and excellent responsiveness making work easier and more efficient. The VT-Drive transmission offers four speed ranges with advance speeds from 40 m/h to 50 km/h for maximum productivity in any application. The McCormick VT-Drive transmission with its four-stage technology sets a new benchmark in continuous variable transmissions. Using a four-stage instead of usual two-stage CVT transmission offers real benefits to farmers and agricultural contractors who look for multi-purpose tractors capable of ensuring maximum productivity whatever the task or the field conditions. This transmission offers four speed ranges to suit different operating requirements:
- Range 1 Creeper: 0.5 - 3 km/h
- Range 2 Field 1: 0.5 - 12 km/h
- Range 3 Field 2: 0.5 - 21 km/h
- Range 4 Transport: 0.5 - 40 o 50 km/h
The VT-DRIVE transmission features four operating modes:
|X7.624 VT DRIVE
|SHIPPING WEIGHT - MEASURED WITH AVERAGE SPECIFICATIONS Kg
|MAXIMUM PERMISSIBLE WEIGHT Kg
