X8 Series

X8 Series

TECHNOLOGY AT MAXIMUM POWER

Engine

6728/ 6

Power

194, 210, 224

Transmission

VT-Drive

PREMIÈRE CAB: YOUR NEW OFFICE IN FIRST CLASS

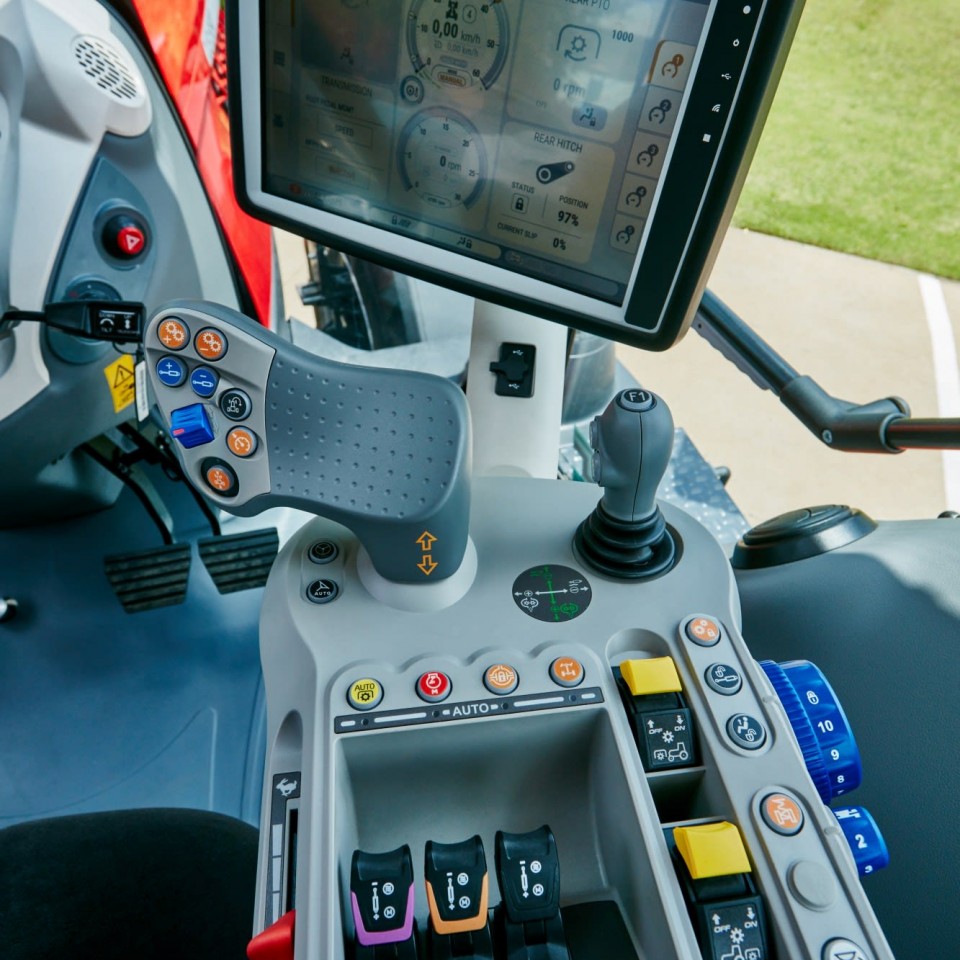

Première Cab, the new concept of the X8, thanks to its 4-post structure offers panoramic visibility in every direction, which reduces the need to change position to control blind spots. The rear-hinged doors increase the visibility even more. Furthermore, perfect pressurization the cabin, and its excellent soundproofing level, up to 70 dB, ensure a comfortable working environment. Access in the cabin is comfortable and safe, thanks to wide steps, well spaced and with a correct inclination. The passenger seat is fully retractable, for perfect accessibility.Interiors, they adopt automotive quality materials that are pleasant to the touch and easy to clean. The steering wheel and the dashboard are adjustable in inclination and depth, to meet the needs of each operator. The Alcantara seat is swivel, with dynamic air suspension, vibration reduction system, automatic height adjustment and backrest with both heating and ventilation, for maximum well-being: the best in the category. The right armrest groups all the main controls for a comfortable and intuitive control of the X8. The multi-function joystick VT-EasyPilot has an ergonomic handle and clear functions.The large 12 "touch screen, located on the armrest, thanks to a simple graphic inspired by the tablet, allows you to configure and manage the tractor in an immediate way. As standard, the Première Cab is equipped with: refrigerated storage compartment and bottle compartment; 12V sockets for charging mobile devices; interior mirror; sunroof and transparent, for easy work with the front loader; 10 lights placed on the roof, for unsurpassed visibility, able to transform the night into day. Housed on the roof, the efficient automatic air conditioning system ensures excellent distribution of the treated air in all weather conditions.

“BETAPOWER” ENGINES: MORE POWER, LESS FUEL

The McCormick X8 range is equipped with the new 6-liter, 6-liter, 6-liter Betapower Fuel Efficiency engines. The Betapower engines are equipped with an eVGT turbocharger, Common Rail injection and Hi-SCR + DOC exhaust gas treatment system, to comply with the Stage3 / Tier3 Final anti-pollution regulations. The X8 range consists of 3 models:

- X8.660 VT-Drive, from 264/194 hp / kW

- X8.670 VT-Drive, from 286/210 hp / kW

- X8.680 VT-Drive, from 310/228 hp / kW

The new Betapower Fuel Efficiency is a truly evolved engine, capable of combining great simplicity with maximum reliability and durability.

X8.660/X8.670/X8.680

- Tier 3 = BETAPOWER

 - MAX. ENGINE POWER WITH POWER PLUS AT 1900 RPM (ISO RATING) hp / kW

194-224

 - RATED ENGINE POWER WITH POWER PLUS AT 2100 RPM (ISO RATING) HP / KW

186-215

 - MAX. TORQUE (WITH POWER PLUS) MM

1132-1282

 - FUEL TANK CAPACITY liters

550

TRASMISSION VT-DRIVE

VT-Drive, so easy to use that it becomes impossible to do without it. The continuously variable transmission VT-Drive ensures the X8 a linear and constant progression, without having to use the gears, as the selection is automatic. The use of the VT-Drive is really immediate: just release the parking brake, choose the direction with the shuttle and accelerate. This absolute simplicity, combined with clear controls and a touch screen monitor with an intuitive interface, makes working with the X8 really easy and enjoyable. Work with the most advanced continuously variable transmission on the market. The continuously variable VT-Drive transmission has always proven to be very reliable.Now, the innovative 4-stage technology projects it even further into the future, but its effects are immediate: lower fuel consumption, smoother running and increased efficiency. The X8's VT-Drive transmission responds immediately to your commands. The combination of a performance engine and the state-of-the-art 4-stage continuous-change VT-Drive transmission provides the X8 with fast acceleration and unrivaled responsive capability.

DIMENSIONS AND WEIGHTS

X8.660X8.670X8.680
FRONT TIRES650 / 65R34650 / 65R34650 / 65R34
REAR TIRES710 / 75R42710 / 75R42710 / 75R42
D- HEIGHT OVER CAB MM340034003400
C- WHEELBASE MM300030003000
A- MAX. LENGTH (WITH BALLAST WEIGHTS) MM515051505150
E- GROUND CLEARANCE 4WD MM520520520
B- MIN. WIDTH MM293029302930
TOTAL WEIGHT WITHOUT BALLAST WEIGHTS KG108001080010800
