McCormick C-MAX

90 - 100 - 110

Main features

CYLINDERS
4
POWER
83, 92.5, 102
TRANSMISSION
Synchro Shuttle

so simple, so efficient

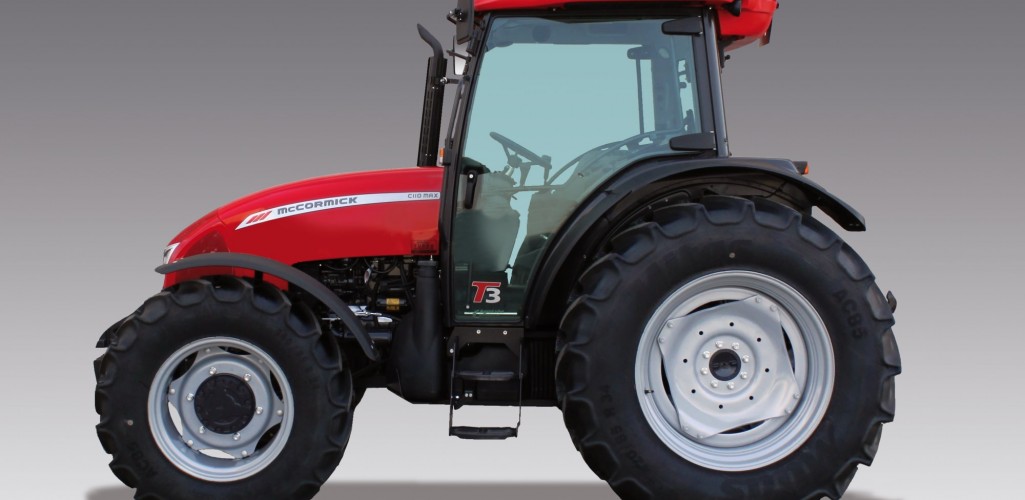

The C-Max series is a range of simple and modern tractors. Available in both platform and cab versions, the C-Max tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 74, 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The C-Max 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO.  The C-Max also offers a high-clearance version (HC) for both the two- and four-wheel drive models. Rotating the rear drop-down final drives and using special front axles and tall, narrow tyres result in higher belly clearance, making this tractor ideal for working in specialty crops such as rice fields and interrow crops.

PERKINS DIRECT-INJECTION ENGINE

The C-Max tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. The C-Max 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO. The hood, fully restyled to reflect the new family styling, provides unobstructed view in all directions and opens wide to provide easy access to the engine compartment for service and maintenance.

C110 MAXC90 MAXC100 MAXC110 MAX
TIER 0TIER 3TIER 3TIER 3
PERKINS DIRECT-INJECTION ENGINE1104A-44T1104D-441104D-44TA1104D-44TA
MAX. POWER ISO HP/KW106.8/78.583 / 6192,5 / 68102 / 75
MAX. TORQUE NM400352363416
DISPLACEMENT/NR. OF CYLINDERS cm34400/4 TURBO4400/4 TURBO4400/4 TURBO AFTERCOOLER4400/4 TURBO AFTERCOOLER
FUEL TANK CAPACITY LT102102102102

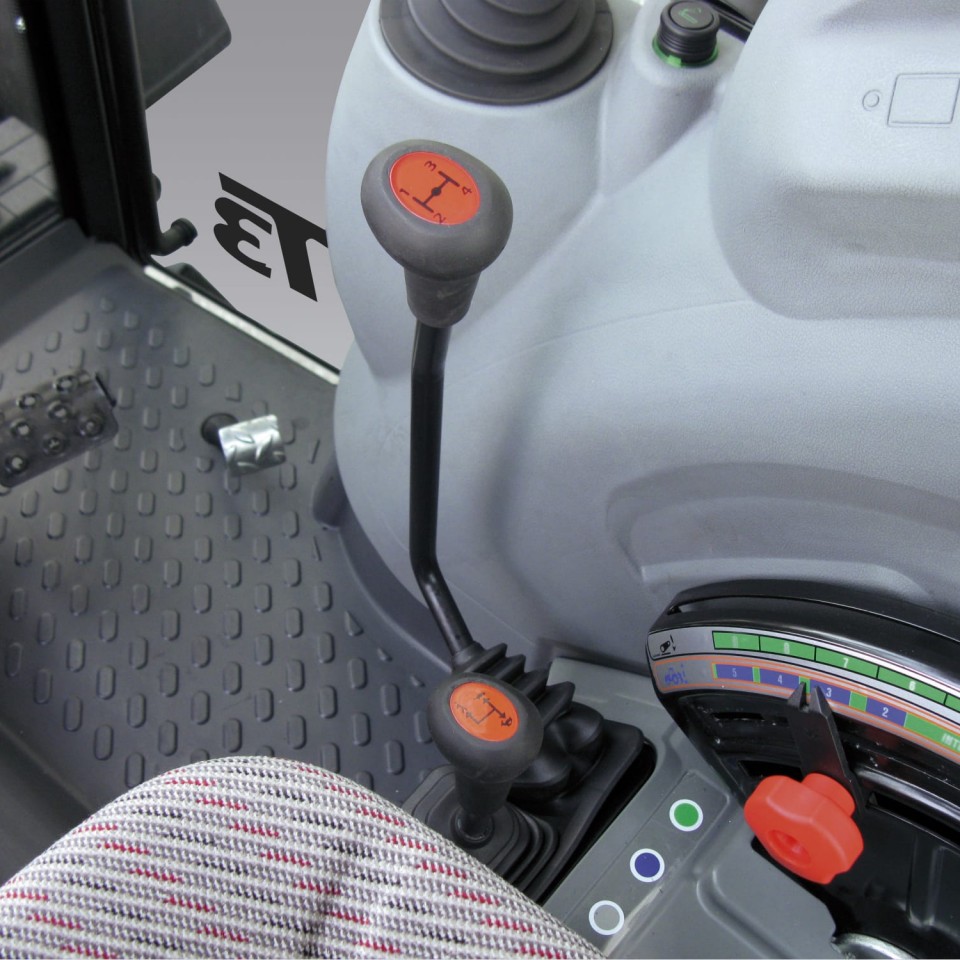

Synchro Shuttle transmission

The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models.

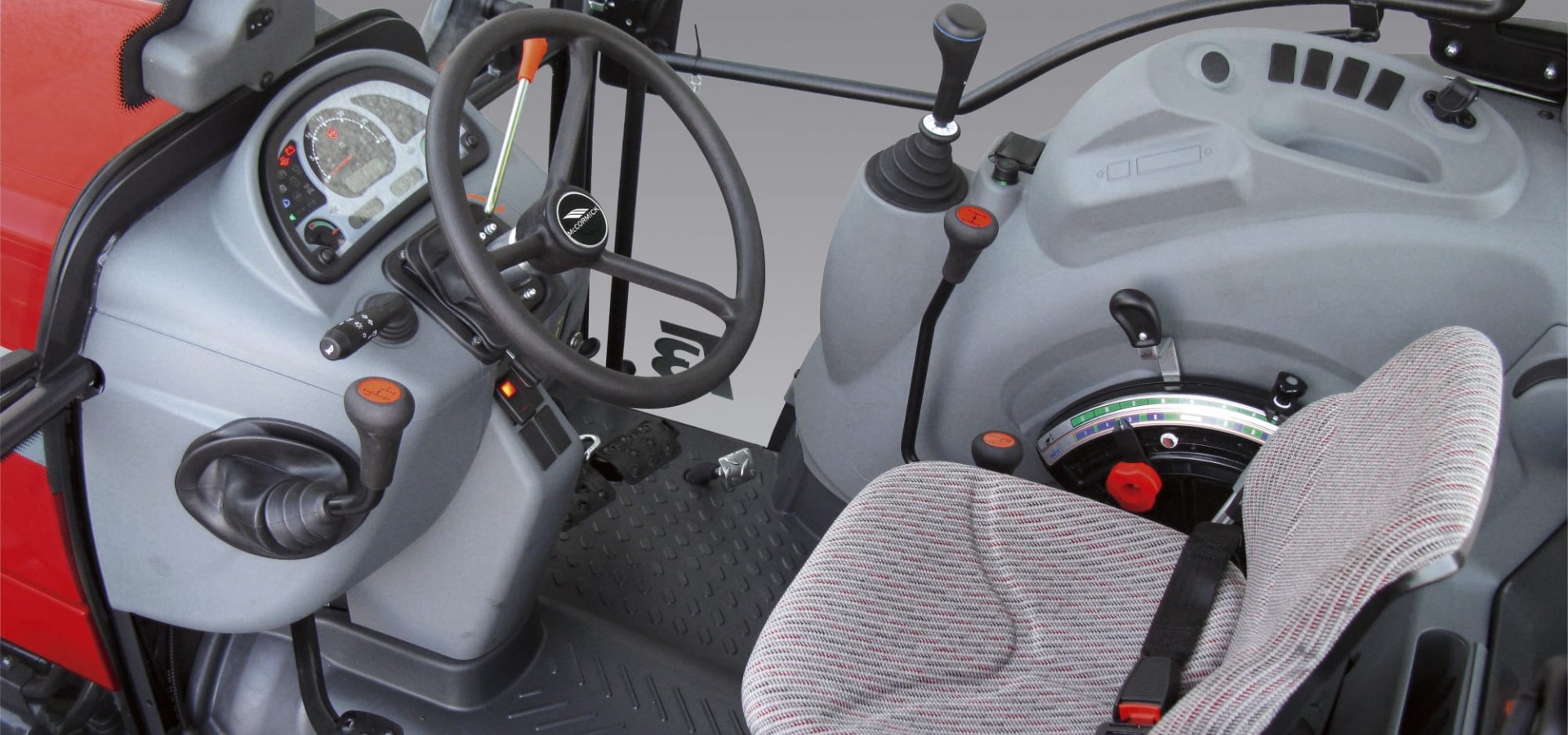

Cab "Deluxe"

The fully-glazed Deluxe cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the C-Max range is designed for productivity, versatility and comfort.

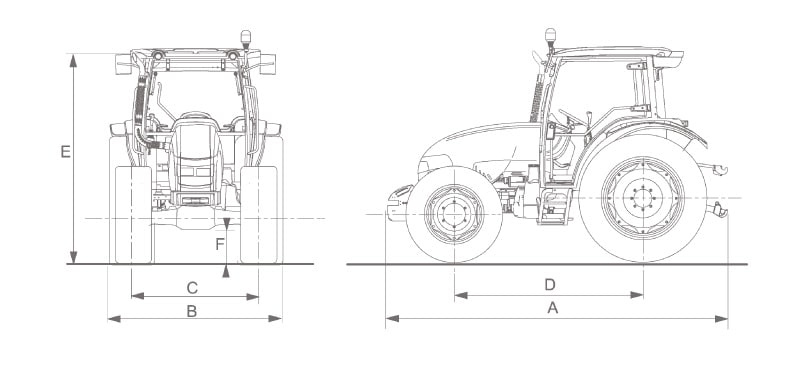

DIMENSIONS AND WEIGHTS

 C110 MAX (T0)

STD

C90 MAX (T3)

STD              HC

C100 MAX (T3)

STD        HC

C110 MAX (T3)

STD              HC

FRONT TYRES 4WD12.4-2412.4-2413.6-24380/70 R24
REAR TYRES16.9-3016.9-3016.9-34480/70 R34
A – LENGTH (WITH BALLAST WEIGHT) MM4136413641364160
B – MIN. WIDTH MM1945194520342110
C – FRONT TRACK ADJUSTMENT 4WD MM1553-19541608-19541540-19671740-2167
C – REAR TRACK ADJUSTMENT MM1508-19081515-20081612-20121612-2012
D – WHEELBASE 2WD/4WD MM2365-23402341/2316   2255/2230 2341/2316   2255/22302365/2340   2255/2230
E – HEIGHT OVER CAB MM2518251825582563
F – GROUND CLEARANCE 4WD MM425425475475
WEIGHT (WITHOUT BALLAST WEIGHTS) 4WD + (150KG CAB) KG34503330   34603330   34603450   3500
