B-MAX 75 & 85
The B-MAX Series
Engine
4400/ 4
Power
55, 60
Transmission
Rear Mechanical Diff. Lock
A whole new level of reliability and functionality
Introduced as a restyled version of the highly successful MB Series, the B-MAX T2 tractor range from McCormick, features a fresh new look along with enhanced ergonomics. The new tractor family comes in both two- and four-wheel drive versions and is offered at a very attractive entry level price. Entirely manufactured in Italy by Argo Tractors, the new B-MAX T2 range delivers excellent performance combined with high reliability and functionality. Two models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B-MAX 75 and 85 models are powered by engines meeting Tier 2 emissions regulations.
Perkins 1104A series engines
B-Max 75 & 85
Direct Injection Diesel Engine = 1104C-44
Rated Power ISO (kW) = 55-60
Rated Speed (rpm) = 2200
Maximum Torque (Nm) = 290-294
Maximum Torque Speed (rpm) = 1400
Bore / Stroke = 105/127
Water Cooling & Air Filter = Standard
Transmission
Basic Gearbox = STD
Rear Mechanical Diff. Lock = STD
Power Take Off
Independent Mechanical Engagement = STD
2 Speeds 540/100 rpm = STD
Ground Speed = STD

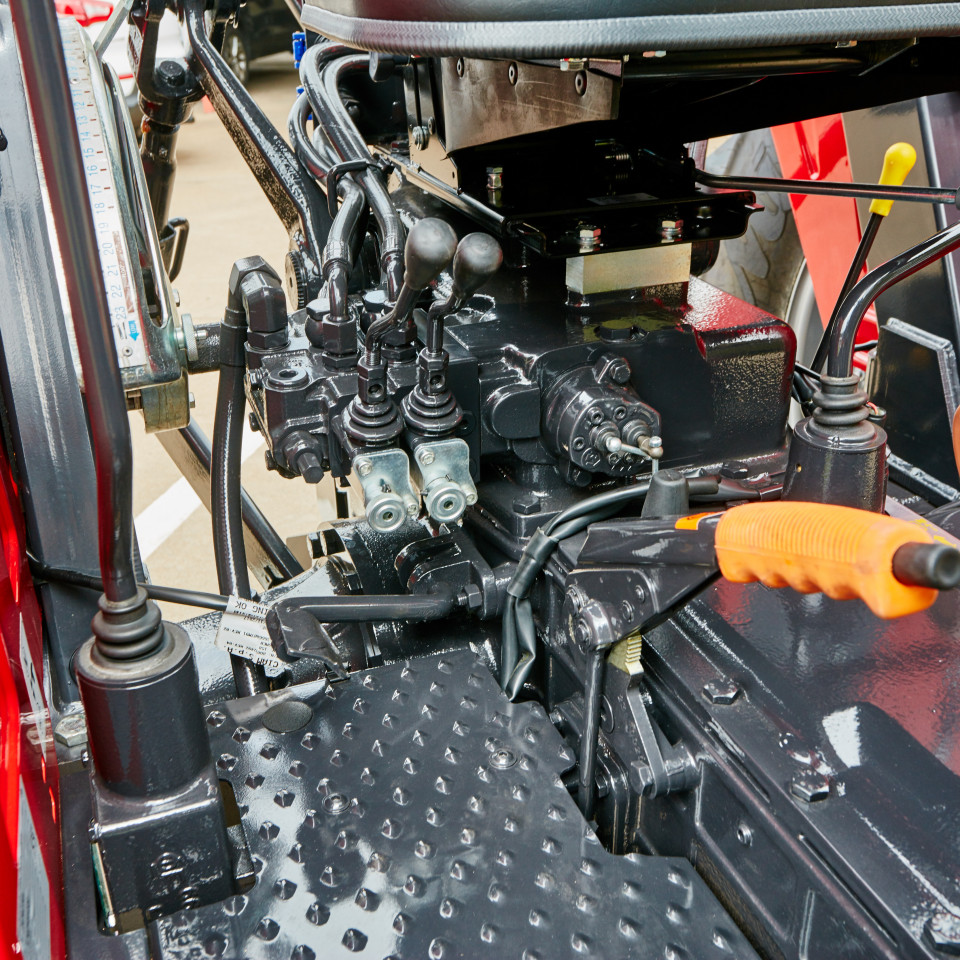

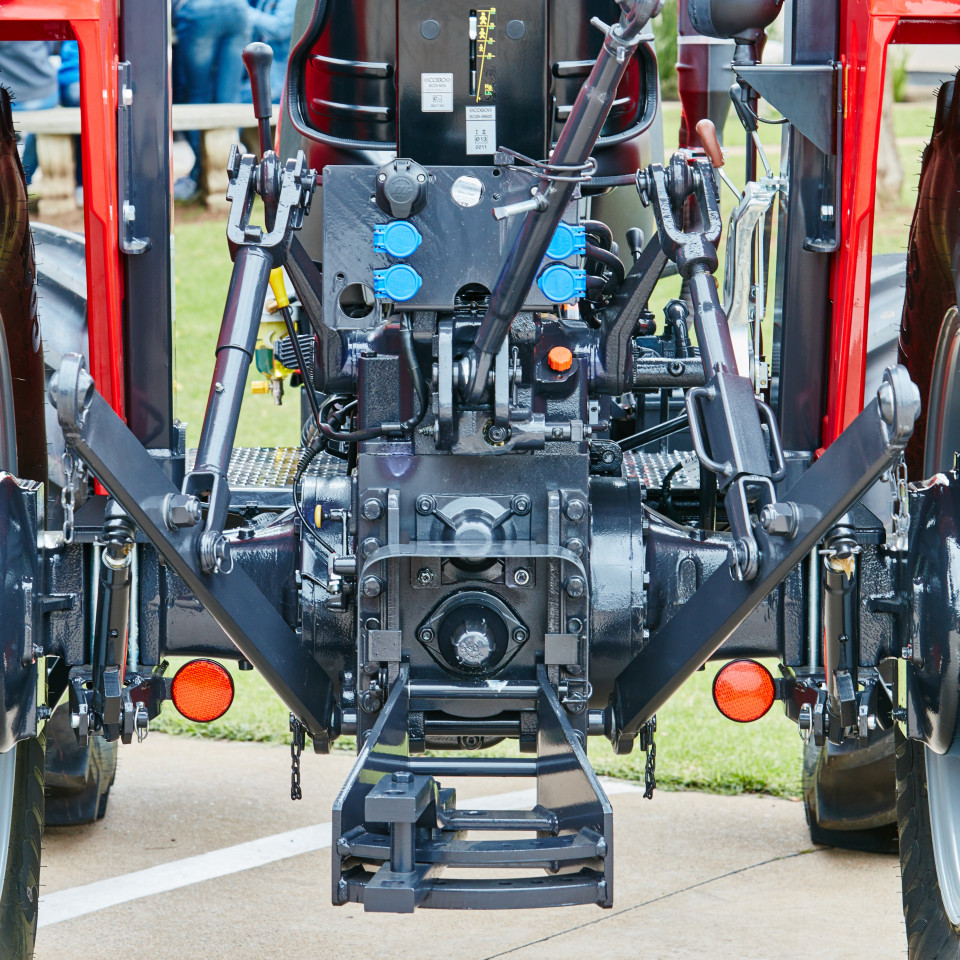

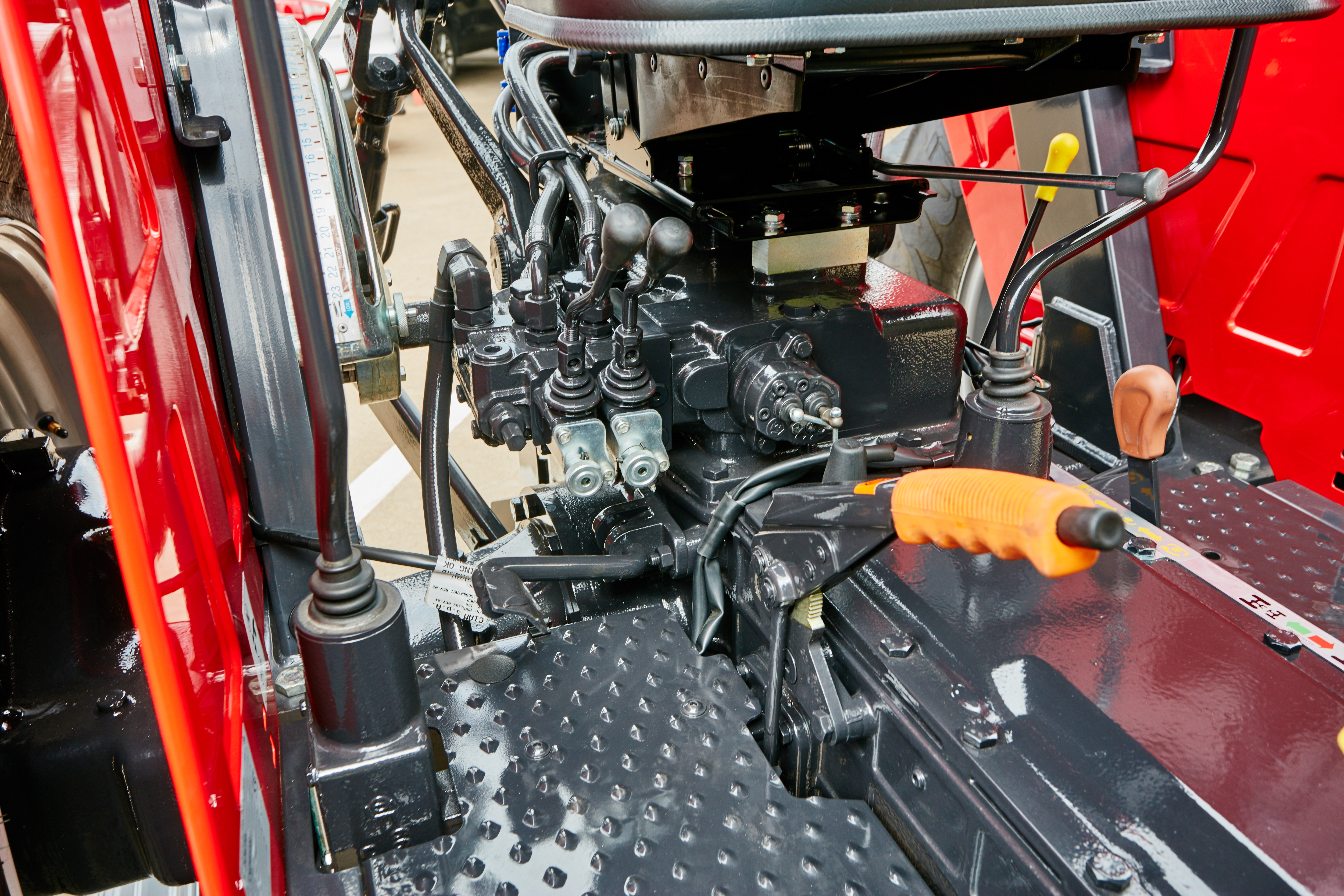

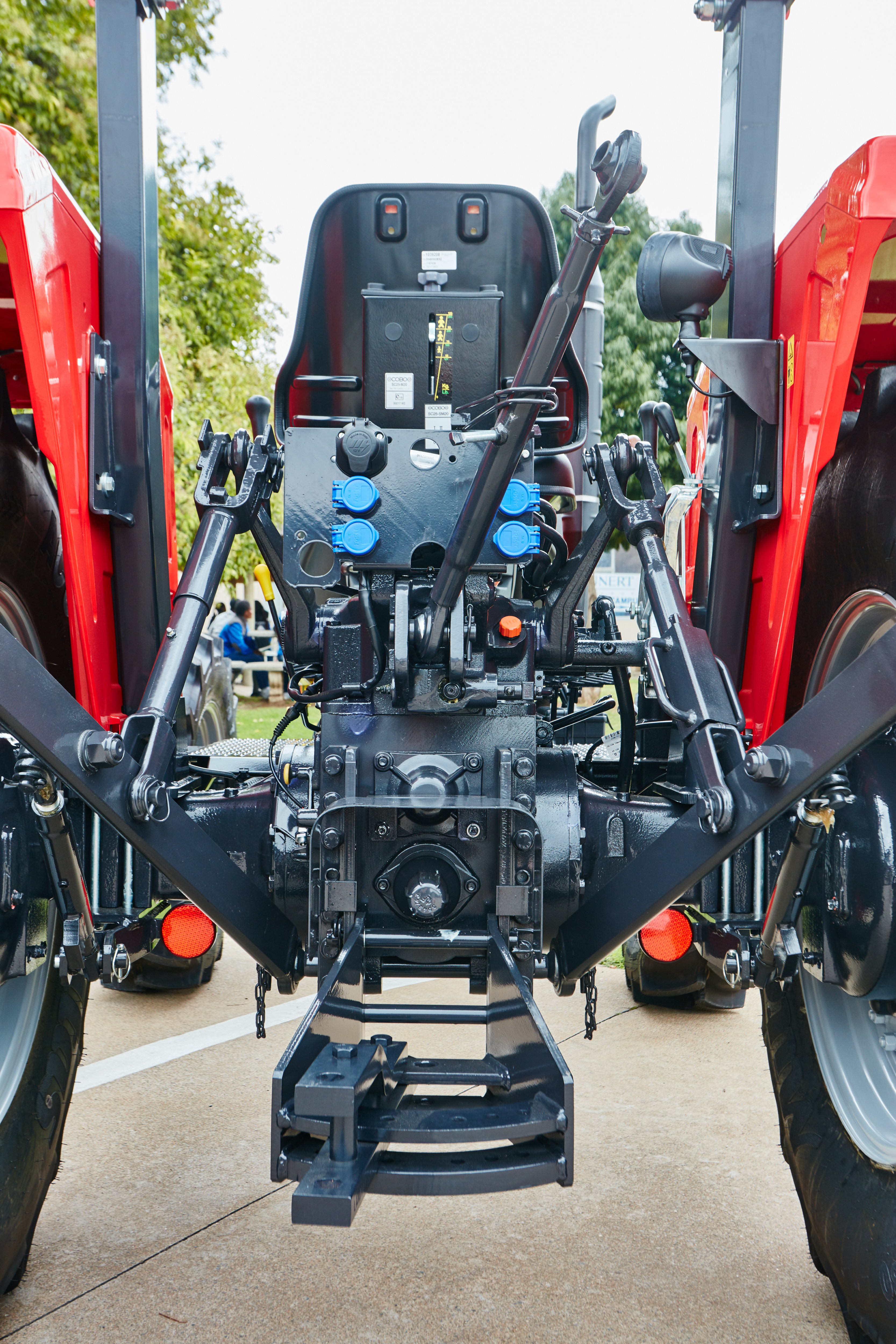

Hydraulic System
Mechanically Operated = STD
Position, Draft and Control Functions = STD
Lifting Capacity = 2700
Max Operating Pressure bar = 180
Hydraulic Pump Delivery and Steering = 53+28
WEIGHTS & DIMENSIONS
| B-Max 75 |
B-Max 85 |
|
|---|---|---|
| Length Without Ballast (mm) | 3810 | 3810 |
| Height at Steering Wheel (mm) | 1720 | 1720 |
| Height Over Bonnet (mm) | 1454 | 1488 |
| Height Over Safety Frame (mm) | 2590 | 2590 |
| Maximum Ground Clearance (mm) | 430 | 430 |
| Weight Without Ballast 4WD (kg) | 3147 | 3147 |
