G-MAX
G-MAX
offers power and simplicity without compromise
Rugged and user-friendly, the G-Max tractor from McCormick is a truly reliable partner that will perform all tasks in the field with ease. The tractor has been fully redesigned to improve efficiency: the four-post cab with opening roof hatch and the sloping line of the bonnet ensure unequalled all-round visibility.
Simply, powerful and reliable
Engine
6,7 / 6
Power
117 133 141 157
Transmission
Speed Six mechanical transmission and a T-Tronic electronic transmission
Equipped with differential lock, wet disc brakes and fourwheel drive, the reliable front axle of the G-Max offers a high ground clearance and a 55-degree steering angle. These features increase traction and manoeuvrability, improving comfort, safety and productivity.
Our Technology
McCormick enters the era of precision farming, equipping its entire range with an
advanced digital platform that boosts tractor performance and efficiency while significantly
reducing fuel consumption and emissions.
MAIN FEATURES
The FPT NEF 67 6.7-litre, 6-cylinder turbo intercooled engine delivers up to 157 hp with a peak torque of 691 Nm at 1400 rpm, for improved traction and up to 10% fuel saving. A 260-litre fuel tank ensures longer operation. Maintenance checks are a breeze with the tilt-up bonnet. The XtraShift transmission with 6-speed powershift (HML) and three ranges provides 54F/18R speeds. The de-clutch function and the reverse power shuttle allow for quick gear shifting and smooth forward/reverse shuttling. A creeper unit increases speeds to 108F/36R, allowing a minimum creep speed of 350 m/h. Operator comfort is maximised with ergonomically-arranged intuitive controls, air-suspension seat, adjustable telescopic steering wheel and climate control. Up to 12 halogen lights ensure optimal illumination of the work area at night. The closed-centre hydraulic system with variable-displacement pump provides a total flow of 148 l/min. The G-Max offers up to five mechanical remote valves and an electronic rear hitch with a maximum lift capacity of 8400 kg. The rear PTO with electrohydraulic control and multi-disc wet clutch provides 540/1000 rpm.
FPT NEF 67 6.7-litre engine
XtraShift transmission
Cab and driving position
Closed-centre hydraulic system
x

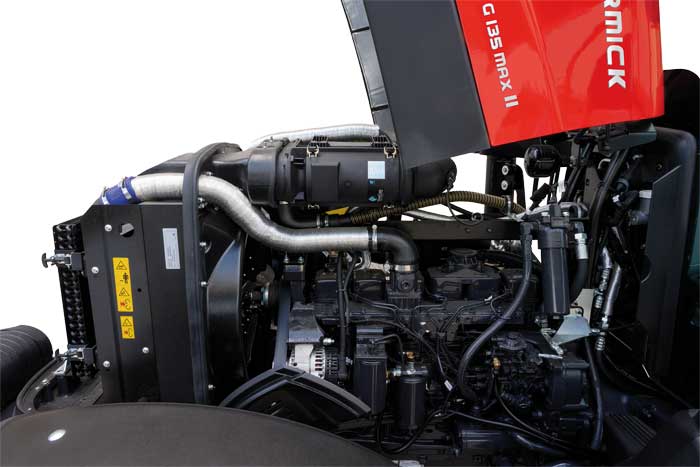

FPT NEF 67 6.7-litre engine
The FPT NEF 67 6.7-litre, 6-cylinder turbo intercooled engine delivers up to 157 hp with a peak torque of 691 Nm at 1400 rpm, for improved traction and up to 10% fuel saving. A 260-litre fuel tank ensures longer operation. Maintenance checks are a breeze with the tilt-up bonnet.
x
XtraShift transmission
The XtraShift transmission with 6-speed powershift (HML) and three ranges provides 54F/18R speeds. The de-clutch function and the reverse power shuttle allow for quick gear shifting and smooth forward/reverse shuttling. A creeper unit increases speeds to 108F/36R, allowing a minimum creep speed of 350 m/h.
x

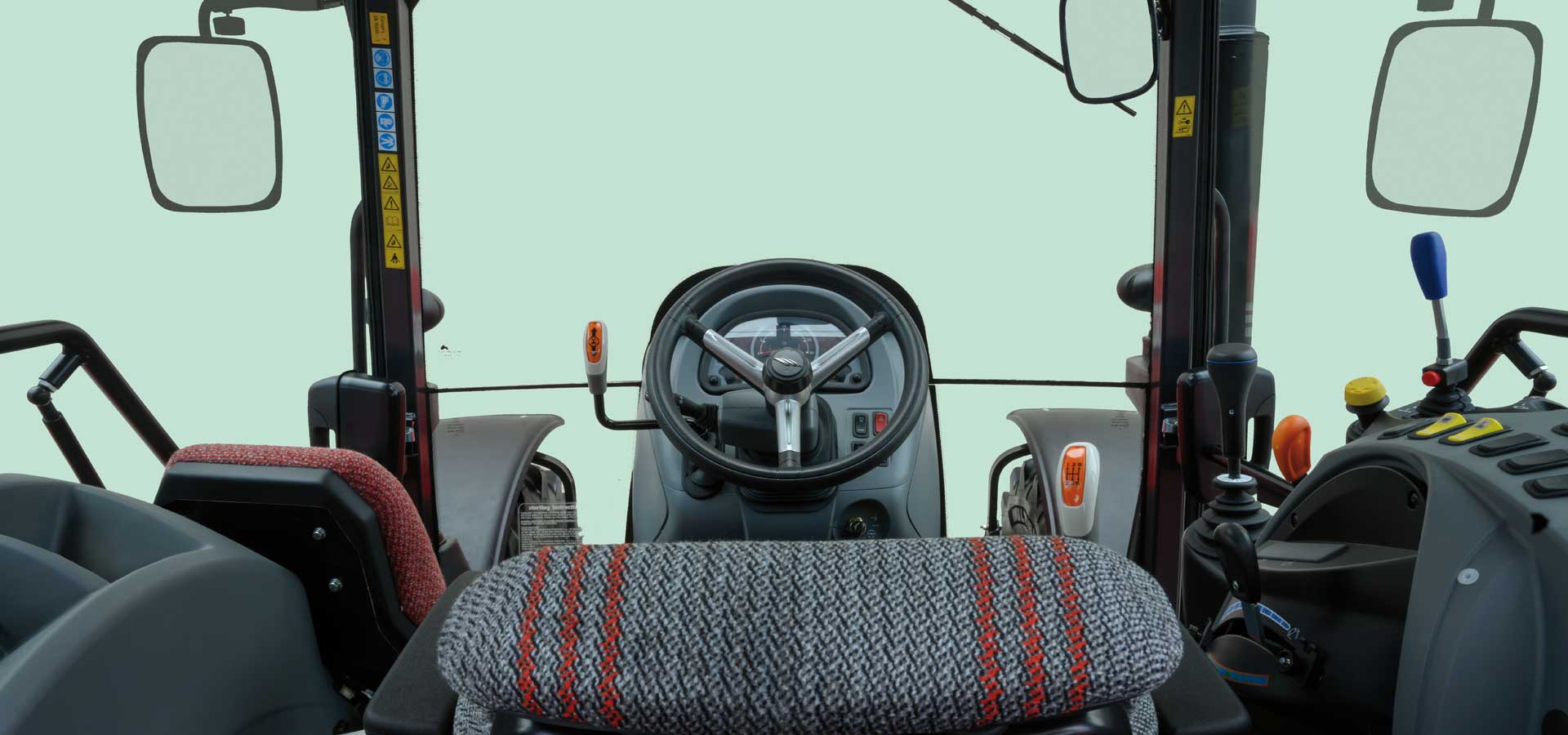

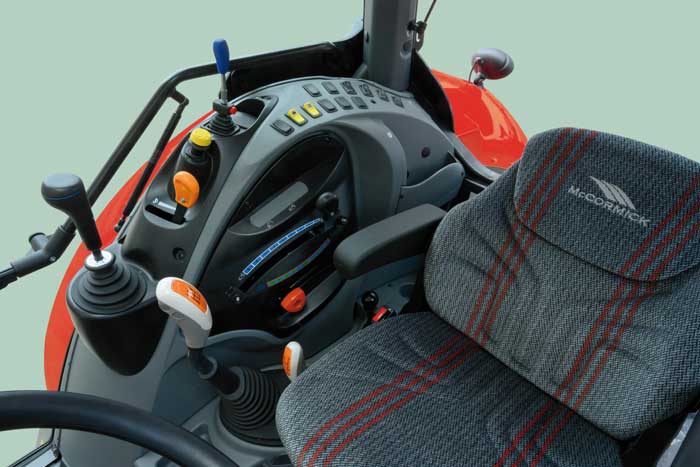

Cab and driving position
Operator comfort is maximised with ergonomically-arranged intuitive controls, air-suspension seat, adjustable telescopic steering wheel and climate control. Up to 12 halogen lights ensure optimal illumination of the work area at night.
x
Closed-centre hydraulic system
The closed-centre hydraulic system with variable-displacement pump provides a total flow of 148 l/min. The G-Max offers up to five mechanical remote valves and an electronic rear hitch with a maximum lift capacity of 8400 kg. The rear PTO with electrohydraulic control and multi-disc wet clutch provides 540/1000 rpm.
All the accessories and features that make this tractor unique and irreplaceable.
GALLERY VIDEO
THE GALLERY OF G-MAX
