X5M
X5M
The workmate you can always trust
Boasting exceptional versatility and performance comparable to higher class tractors, the X5M tackles every challenge with ease. With its Italian-style compact design, this handy tractor is ideally suited for open-field tasks like ploughing, tilling and harrowing, but it is equally perfect for sowing and haymaking and moves safely around the farm and on the road.
Rugged, nimble and reliable
Engine
4,4 / 4
Power
92.5, 101.9, 110.6
Transmission
Mechanical with Synchro Shuttle and Power Shuttle
The X5M features a braked front axle with differential lock and electrohydraulic four-wheel drive engagement. The wet multi disc brakes ensure efficient braking on all four wheels. A high ground clearance and a 55-degree steering angle maximise manoeuvrability.
Our Technology
McCormick enters the era of precision farming, equipping its entire range with an advanced digital platform that boosts tractor performance and efficiency while significantly reducing fuel consumption and emissions.
MAIN FEATURES
The X5M tractors are powered by Perkins 1104D 4.4-litre turbo aftercooled engines with power ratings from 93 to 111 hp. The XtraShift transmission with three-stage HML powershift offers 48F/16R speeds. Both options feature an electrohydraulic power shuttle with response modulation and de-clutch function for fast and smooth clutchless gear shifting. The creeper unit allows advance speeds from 0.4 to 40 km/h. With its four-post design and large glass areas, the cab of the X5M tractor provides a 360-degree all-round view for easy maneuvering in tight spaces, where good close range visibility is needed. An opening transparent roof hatch provides extra visibility for loader opera. The open-centre hydraulic system supplies 60 + 30 l/min to operate both the hydraulic functions and the steering system, allowing for precise implement operation. The rear PTO offers two speeds: 540/540E or 540/1000 rpm. The sturdy rear hitch, with maximum lift capacity of 4500 kg, can be electronically controlled.
Efficient and reliable Perkins engines
Power Four transmission with electrohydraulic power shuttle
Total View Slim cab: panoramic view
Hydraulic system
x
Efficient and reliable Perkins engines

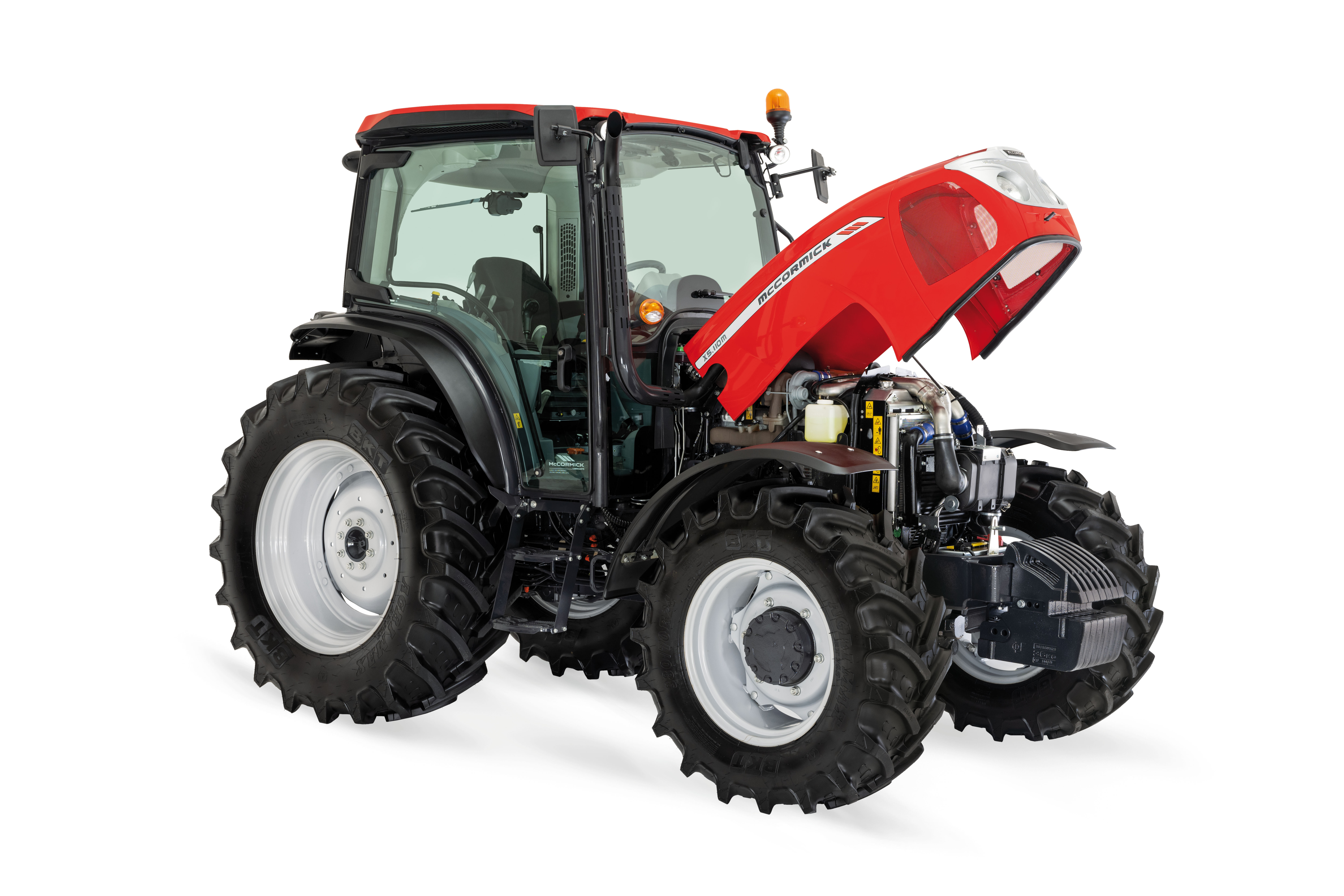

The X5M tractors are powered by Perkins 1104D 4.4-litre turbo aftercooled engines with power ratings from 93 to 111 hp.
x
Power Four transmission with electrohydraulic power shuttle
The XtraShift transmission with three-stage HML powershift offers 48F/16R speeds. Both options feature an electrohydraulic power shuttle with response modulation and de-clutch function for fast and smooth clutchless gear shifting. The creeper unit allows advance speeds from 0.4 to 40 km/h.
x
Total View Slim cab: panoramic view

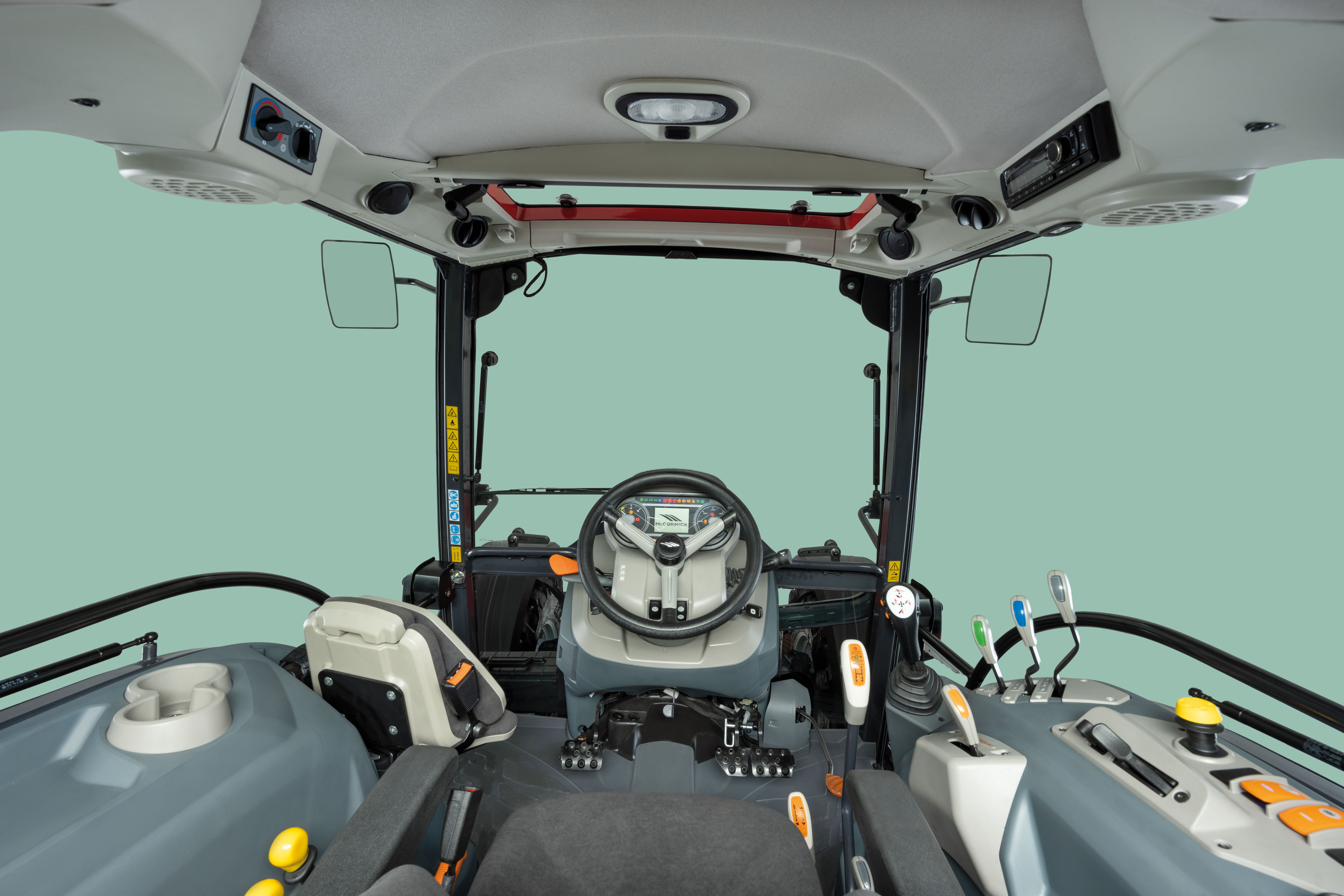

With its four-post design and large glass areas, the cab of the X5M tractor provides a 360-degree all-round view for easy maneuvering in tight spaces, where good close range visibility is needed. An opening transparent roof hatch provides extra visibility for loader opera.
x
Hydraulic system
The open-centre hydraulic system supplies 60 + 30 l/min to operate both the hydraulic functions and the steering system, allowing for precise implement operation. The rear PTO offers two speeds: 540/540E or 540/1000 rpm. The sturdy rear hitch, with maximum lift capacity of 4500 kg, can be electronically controlled.
All the accessories and features that make this tractor unique and irreplaceable.
