New X2 range: the compact McCormick becomes Stage V
The latest addition launched by McCormick is called X2, and is the new compact range boasting an extensive revolution of the engine, which passes from the Yanmar Tier 3 of the previous series to the Kohler Stage V emission engine. The transition to the Stage V emission engine did not require an increase in the height of the bonnet, as one would assume, thanks to the design skills of Argo Tractors in research and development, by adopting an exhaust gas treatment system at the side of the bonnet. This ensures the visibility of the operator remains optimal, providing easy handling and comfort to the driver and an extremely flexible use of the tractor, which is suitable both for specialised farming applications and municipality works, such as grounds maintenance of public parks or, for example, that of golf courses.
Extremely flexible
Engine
1,9 / 3
Power
49 57
Transmission
Mechanical power shuttle transmission
The X2 range is available in two different configurations: Standard configuration, available for the platform or cab versions, and GE (Ground Effect), only for the platform version which, with a “lowered” set-up achieved thanks to the use of dedicated rear reduction gears and a front axle, which further reduces the overall height from the ground of the bonnet and mudguards, making it an excellent choice for working under polytunnels.
Digital power.
McCormick enters the era of precision farming as a leader, by equipping the entire range with an advanced digital platform that boosts tractor performance and efficiency while significantly reducing fuel consumption and emissions. and efficiency of the tractors, significantly reducing fuel consumption and emissions.
MAIN FEATURES
The two models in the range, X2.055 and X2.060, thanks to the 1.9-litre, 3-cylinder, turbo aftercooled engines, achieve a maximum output of 49 and 57 horsepower (ISO) respectively, with maximum torques of 180 and 200 Nm already available at 1200 rpm. An important new feature is the availability of the Engine Memo Switch that allows you to save engine rpms and to quickly retrieve them with a practical switch on the right-hand console. The mechanical power shuttle transmission is available in 12/12 or 16/16 versions if equipped with a creeper unit, with a minimum speed of 220m/h. The FOPS cab stands apart for its design, its comfort, thanks to the air-conditioning, flip-up front window and radio, and its noise and vibration insulation. The new on-board controls are now digital to guarantee a technological upgrade that provides information such as diagnostics and signals, maintenance intervals, data on the work carried out and fuel consumption. The fuel tank has a 40-litre capacity, while the hydraulic flow rate is increased to 35 litres/minute for the rear lift and it also has a dedicated 20-litre/minute steering pump. The category one three-point hitch rear lift system can lift up to 1200 kg and the front lift system, optional with or without a 1,000 rpm PTO, up to 400kg. There are 3 additional spool valves available (2 standard valves and 1 optional floating valve). The controls are installed on the new console. The rear mechanical PTO is available in 2 different speeds: 540 and 540E, plus the synchronised forward speed. The dual traction front axle has an electro-hydraulic engaging “Hydralock” differential lock in both the STD and GE versions.
Kohler Engine
Mechanical power shuttle transmission
Standard configuration, available for the platform or cab versions, GE (Ground Effect), only for the platform version
Hydraulic circuit
x
Kohler Engine
The two models in the range, X2.055 and X2.060, thanks to the 1.9-litre, 3-cylinder, turbo aftercooled engines, achieve a maximum output of 49 and 57 horsepower (ISO) respectively, with maximum torques of 180 and 200 Nm already available at 1200 rpm. An important new feature is the availability of the Engine Memo Switch that allows you to save engine rpms and to quickly retrieve them with a practical switch on the right-hand console.
x
Mechanical power shuttle transmission
The mechanical power shuttle transmission is available in 12/12 or 16/16 versions if equipped with a creeper unit, with a minimum speed of 220m/h.
x
Standard configuration, available for the platform or cab versions, GE (Ground Effect), only for the platform version

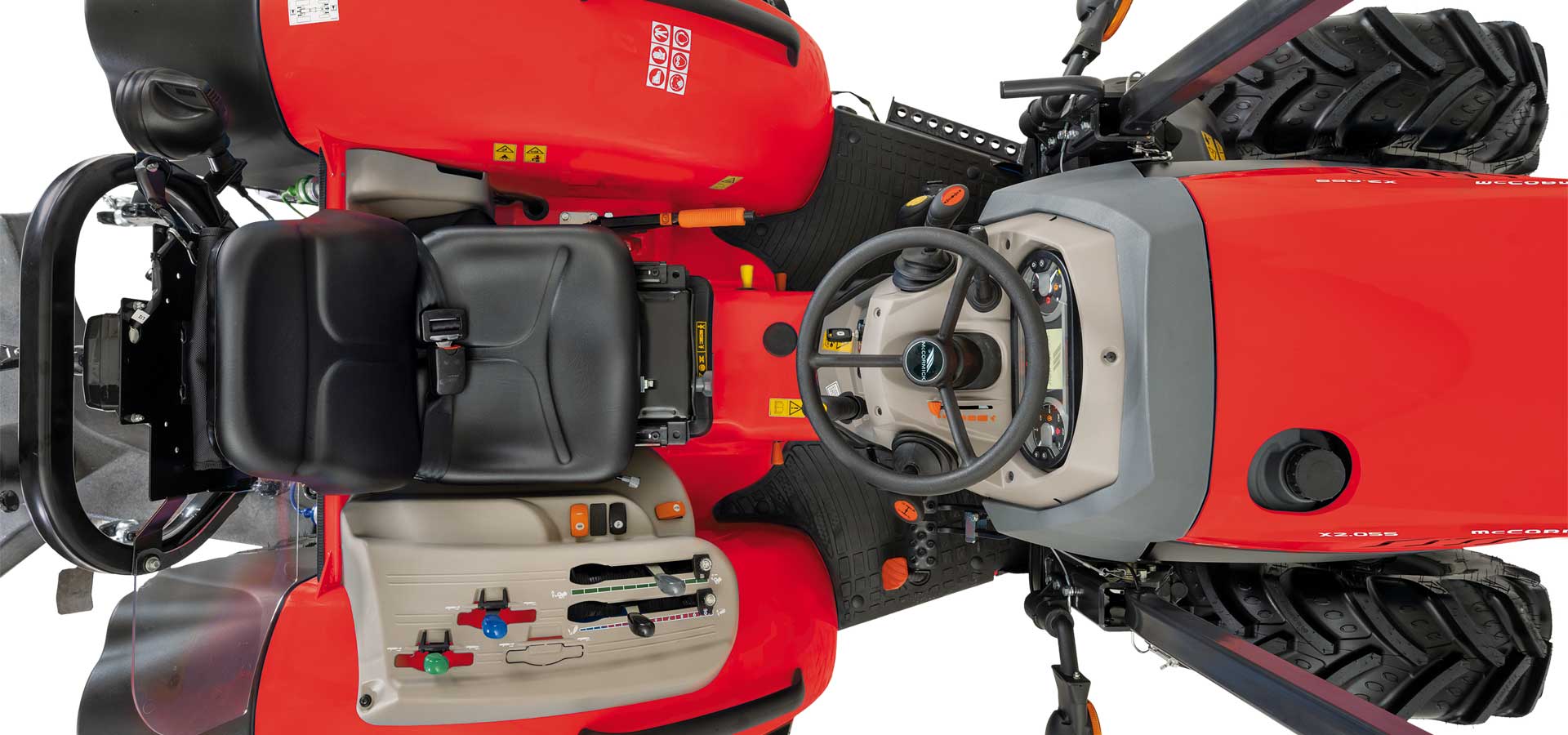

The FOPS cab stands apart for its design, its comfort, thanks to the air-conditioning, flip-up front window and radio, and its noise and vibration insulation. The new on-board controls are now digital to guarantee a technological upgrade that provides information such as diagnostics and signals, maintenance intervals, data on the work carried out and fuel consumption.
x
Hydraulic circuit
The fuel tank has a 40-litre capacity, while the hydraulic flow rate is increased to 35 litres/minute for the rear lift and it also has a dedicated 20-litre/minute steering pump.

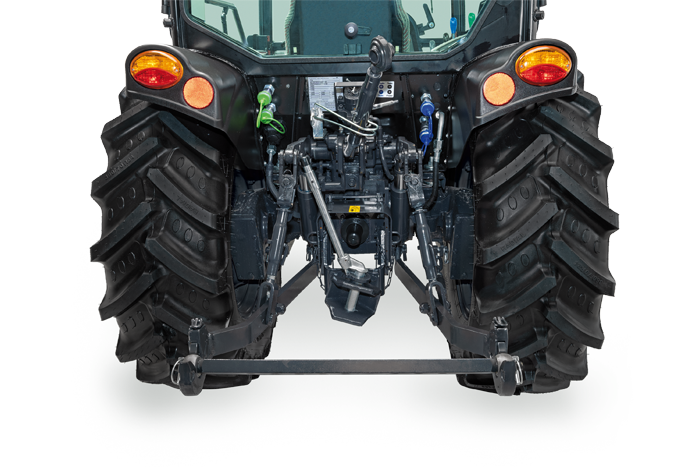

The category one three-point hitch rear lift system can lift up to 1200 kg and the front lift system, optional with or without a 1,000 rpm PTO, up to 400kg. There are 3 additional spool valves available (2 standard valves and 1 optional floating valve). The controls are installed on the new console.
The rear mechanical PTO is available in 2 different speeds: 540 and 540E, plus the synchronised forward speed. The dual traction front axle has an electro-hydraulic engaging “Hydralock” differential lock in both the STD and GE versions.
All the accessories and features that make this tractor unique and irreplaceable.
