McCormick X7.6 lightweight and strong like no other

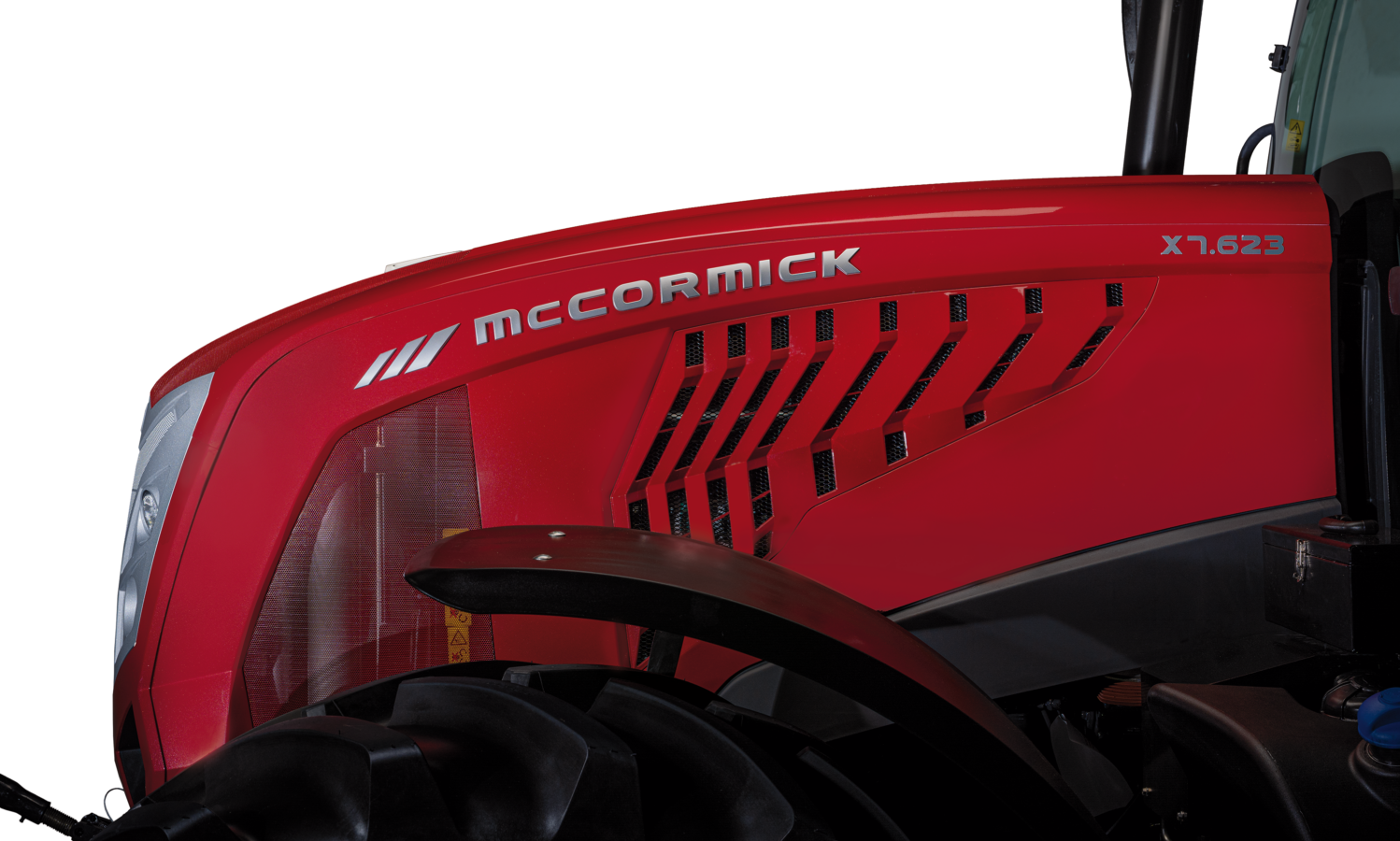

Featuring six-cylinder engines located within a rugged chassis, the new X7.6 LWB series has been designed to meet the most demanding needs of modern farmers and contractors. Inspired by the automotive design, the new X7.6 tractors feature more dynamic and aggressive lines and a spacious cab with easy-to-use, ergonomically arranged controls for convenient operation. The cab roof has been fully restyled and the 12 work lights have been repositioned to provide full all-round visibility for night time operation. The hood has also been redesigned with a more streamlined, aggressive look that enhances visibility to the front.
Boasting up to 225 hp, the new FPT N67 engines deliver more power while ensuring best-in-class performance in terms of traction, fuel efficiency and easy maintenance. The hydraulic system features a high-flow pump that provides 160 l/min, while the electronic management of the hydraulic functions guarantees precise implement operation. In addition, a 12-inch touch screen monitor allows accurate control of both tractor and ISObus-compatible implements via a satellite-based guidance system, thereby maximising efficiency and productivity.

Traction, manoeuvrability and comfort on all terrains

Engine

6,7 / 6

Power

166 190 225

Transmission

P6 Drive

With the engine located within a chassis and the rugged front axle with independent wheels, the X7.6 is the tractor that transfers more power to the ground in its class. The X7.6 offers outstanding traction and excellent manoeuvrability ensuring optimum grip and stability for superior driving comfort in the field and on the road. The front axle is equipped with full hydraulic locking differential and electro hydraulic four-wheel drive engagement ensuring maximum efficiency and safety on all terrains. High capacity wet multi-disc rear axle brakes ensure safe controlled stopping power. Also when braking, the fourwheel drive engages automatically, which in turn brakes the front axle for efficient braking on all four wheels. All X7.6 tractors are equipped with brake power boosting system to reduce the effort required by the operator while improving driving accuracy.

Our Technology

McCormick enters the era of precision farming, equipping its entire range with an advanced digital platform that boosts tractor performance and efficiency while significantly reducing fuel consumption and emissions.

MAIN FEATURES

x

New FPT N67 engine: plenty of pulling power in the field

The X7.6 tractor range is powered by new FPT N67 engines. These 6.7L, six-cylinder turbo engines with multivalve technology and electronic common rail injection system meet Stage V emissions regulations. The engines are located within a rugged chassis which helps reduce noise and vibration levels within the cab. The engine cooling is ensured by an electronically-controlled Viscotronic fan, which is standard on the entire range. This solution improves cooling efficiency while reducing fuel consumption and noise levels. The new FPT N67 that power the X7.6 tractors are state-of-the-art engines designed to offer farmers simplicity and functionality without compromising on performance, reliability and durability. The FPT N67 engines feature the Power Plus system which electronically adjusts the engine power to respond to varying load conditions. During transport applications or PTO operations, the Power Plus automatically delivers additional 10 hp to handle tough conditions and heavy loads while maintaining speed and productivity. With the Power Plus the X7.6 tractors will deliver maximum power outputs of 190, 210 and 225 hp.

x

P6 Drive transmisison: the right speed for every application

The P6-Drive transmission with six Powershift speeds on the go and five ranges incorporates a robotized range shifting and an electrohydraulic steering-column power shuttle providing 30 forward and 15 reverse speeds. In addition, a creep speed option offers 54 speeds forward and 27 in reverse. Where legally permitted, the X7.6 can reach a top speed of 50 km/h at reduced engine rpm. The P6-Drive transmission is equipped with an Oil Cut-off function which manages the braking system more efficiently, ensuring better performance on the road and improved fuel economy.

EasyPilot multi-function controller

The ergonomically-designed EasyPilot controller integrated into the multifunction armrest provides easy and intuitive control of the P6-Drive transmission, allowing the operator to shift through all gears and ranges without depressing the clutch pedal. The Powershift button enables seamless speed progression providing optimum traction in any situation, both in the field and on the road. The EasyPilot controller allows the operator to drive and operate the implements with maximum ease and comfort. With the MyFunctions buttons present on the EasyPilot, the operator can configure and activate up to five different functions including the APS Auto Powershift, differential lock, four-wheel drive engagement, De-clutch button, PTO, engine speed cruise control, one remote valve and headland management. All functions are clearly displayed on the digital instrument panel or on the DSM touch screen monitor. On the X7.6 tractors with P6-Drive transmission, the cab is available in two versions: - Premium, with controls on the multifunction armrest; - Efficient, with controls on the right-hand console which also integrates the EasyPilot controller

Smart APS Auto Powershift automatic transmission

On the X7.6 range, the P6-Drive transmission can be controlled both manually and automatically. Based on load conditions, advance speed and engine rpm, the Smart APS Auto Powershift facility automatically selects the right gear in each range. This improves tractor performance and driving safety while optimizing fuel economy.

Stop & Action system

The Stop & Action system integrates the De-clutch function into the brake pedal. This allows the operator to stop the tractor without depressing the clutch pedal and without using the power shuttle. By the combined use of the Stop & Action system and the APS facility, the P6-Drive transmission ensures a smooth driving performance, comparable to that of a CVT transmission.

x

PREMIERE Cab: your new office in first class

The Premiere Cab is a new-concept four-post design with rear hinged doors that provides unobstructed visibility in all directions, giving the driver a clear view of blind spots without the need to change position. A highly-efficient sound insulation system maintains an in-cab noise level of only 70 dB providing the operator with a quiet working environment. The electrohydraulic semi-active cab suspension system further enhances the operator comfort. Wide, well-spaced access steps allow the operator to easily get in and out of the cab, while the buddy seat neatly folds away making for easier and safer access. The cab interior features an automotive-style fit and finish with easy-clean soft-touch materials. The instrument panel and the steering wheel can be electrically adjusted in tilt and depth to suit the operator’s needs. The optional Alcantara upholstered swivel seat with dynamic air suspension system and fully automatic height adjustment features a ventilated backrest for ultimate driving comfort.

x

The X7.6 knows how to pump up your productivity

The X7.6 series tractors feature a closed-centre load sensing hydraulic system (CCLS) with variable-displacement pump. This means that the pump always delivers exactly the quantity of oil that the system requires, thereby eliminating unnecessary power waste and ensuring top performance in any situation. The system supplies up to 160 l/min to the rear hitch and remote valves, allowing for simultaneous operation of all hydraulic functions. The hydraulic system also includes a pump that supplies 52 l/min to the steering system. The X7.6 range has been designed to operate in a variety of conditions with heavy, power-demanding implements. To improve efficiency and productivity, the X7.6 tractors features a rear PTO with four speeds: 540, 540Eco 1000 and 1000Eco rpm. The driveline design of the PTO ensures minimal power loss and the electrohydraulic clutch enables smooth and modulated engagement of the PTO, ensuring a soft start-up of implement. The X7.6 series tractors are further equipped with the Power Plus system, which automatically increases power available when the PTO is operational, allowing the engine to maintain a constant power as the load varies. The rear hitch is equipped with lower link draft sensing for accurate implement control and provides a maximum lift capacity of 9300 kg. A front hitch and PTO are available as an option for applications using front-mounted implements and rear and front implement combinations.

All the accessories and features that make this tractor unique and irreplaceable.
