McCormick F: graduated in versatility

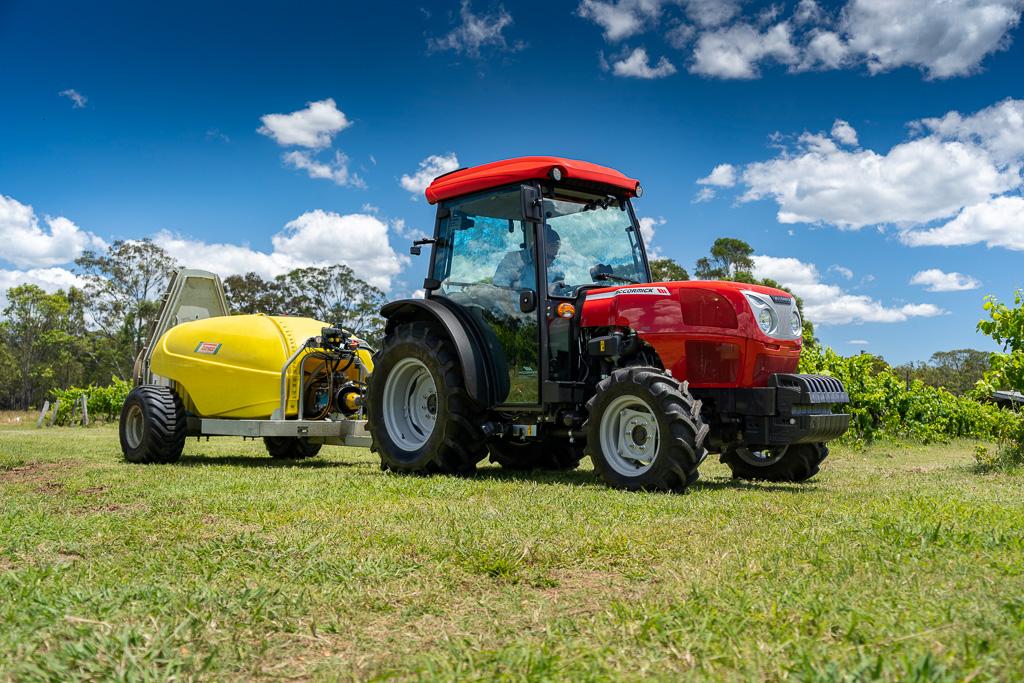

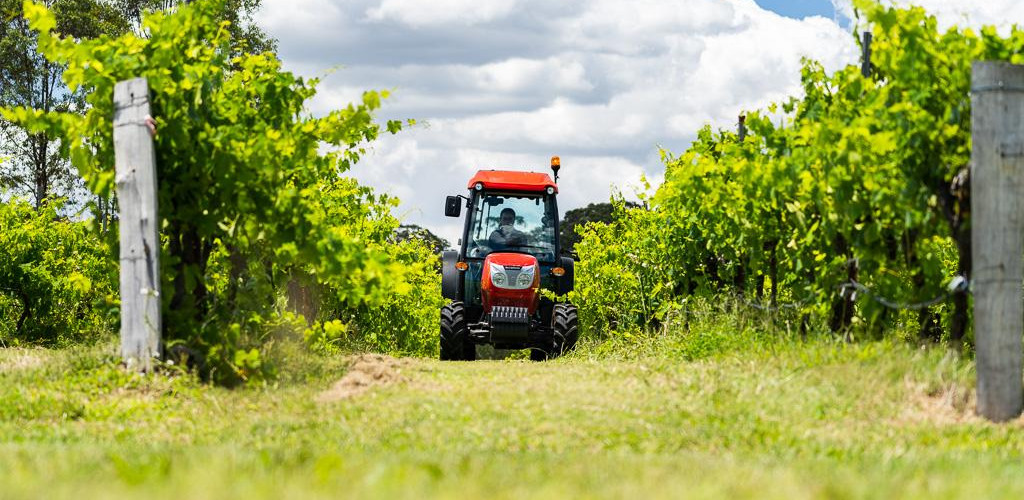

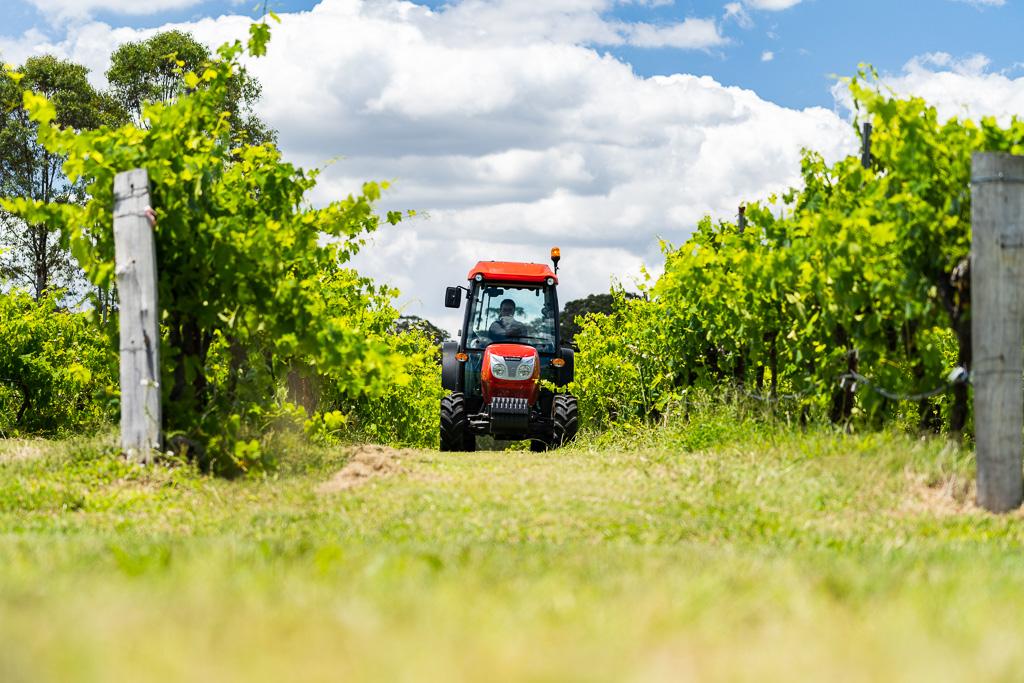

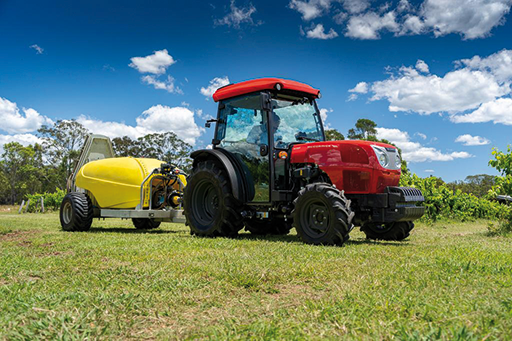

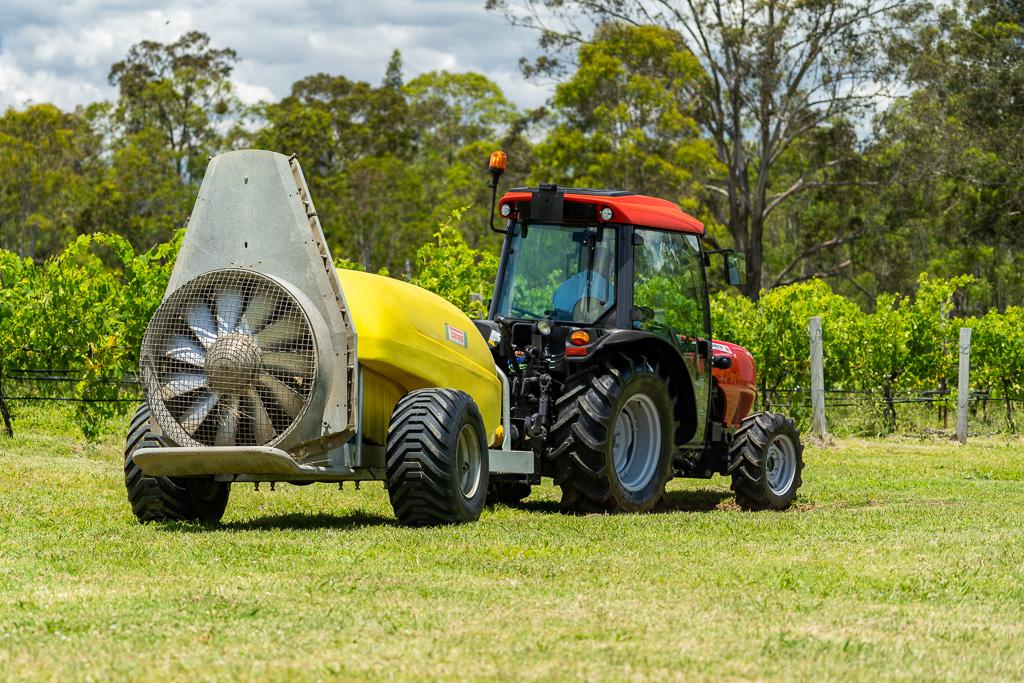

The F specialty tractor from McCormick takes full marks for its compact footprint, manoeuvrability and versatility. It comes in two versions: F STD, designed for work in vineyards and between tight orchard rows; F GE, ideal for low orchards and vineyards, overhead trellis systems and tunnel crops.
Graduated with full marks in versatility
Engine
4,4 / 4
Power
75 83 93 102 110
Transmission
Mechanical and Hi-Lo, with the possibility of hydraulic reverse power shuttle
The Hydra-Lock braked rigid front axle is manufactured by McCormick according to the strictest quality standards. The Hydra-Lock allows full differential lock engagement for out-standing traction and safe braking on all terrains.
Our Technology
McCormick enters the era of precision farming, equipping its entire range with an advanced digital platform that boosts tractor performance and efficiency while significantly reducing fuel consumption and emissions.
MAIN FEATURES
The F range is powered by 4.4-litre, 8-valve, 4-cylinder engines with power ratings from 74 to 111 hp and a maximum torque of 416 Nm at 1400 rpm. Available in naturally-aspirated, turbocharged and turbo aftercooled versions, the Perkins engines ensure quick response under load and at low rpm, providing excellent tractive performance and fuel economy. McCormick transmissions stand for quality, strength and efficiency. They are available in various configurations: 12F/12R, 16F/16R and 32F/32R with Hi-Lo powershift and creeper. All transmissions from McCormick are synchronised and equipped with reverse power shuttle. Featuring an Italian-style driving position mounted on a lowered platform for greater operating comfort, the F tractor is available both in ROPS and cab configurations. High-visibility four-post cab with climate control, radio system and opening front and rear windows for greater safety and year-round comfort. The hydraulic system supplies 60 l/min to the hitch and remotes and 30 l/min to the steering system. A 30-litre oil take-out capacity is available for operating heavy implements. The F tractor comes standard with a three-speed PTO, up to three remote valves, and a rear hitch lifting up to 2700 kg.
Perkins engines: high performance and fuel economy
An efficient transmission for every job
Driving position
Hydraulic system
x
Perkins engines: high performance and fuel economy

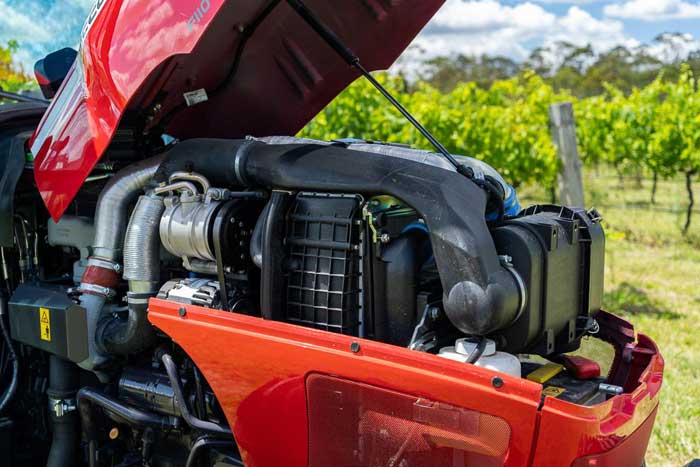

The F range is powered by 4.4-litre, 8-valve, 4-cylinder engines with power ratings from 74 to 111 hp and a maximum torque of 416 Nm at 1400 rpm. Available in naturally-aspirated, turbocharged and turbo aftercooled versions, the Perkins engines ensure quick response under load and at low rpm, providing excellent tractive performance and fuel economy.
x
An efficient transmission for every job
McCormick transmissions stand for quality, strength and efficiency. They are available in various configurations: 12F/12R, 16F/16R and 32F/32R with Hi-Lo powershift and creeper. All transmissions from McCormick are synchronised and equipped with reverse power shuttle.
x
Driving position

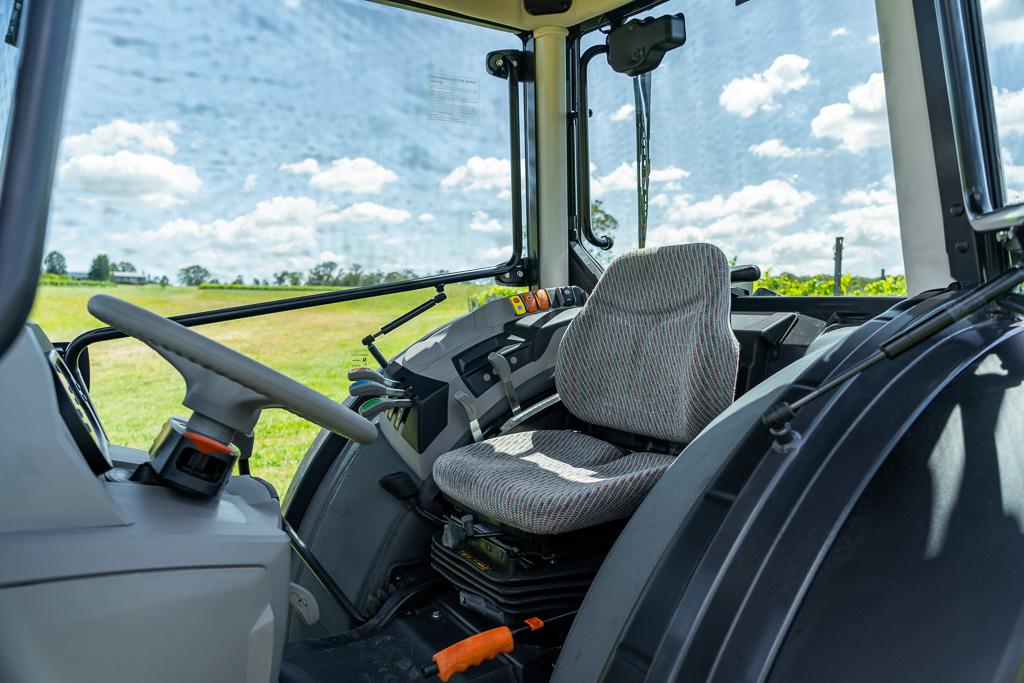

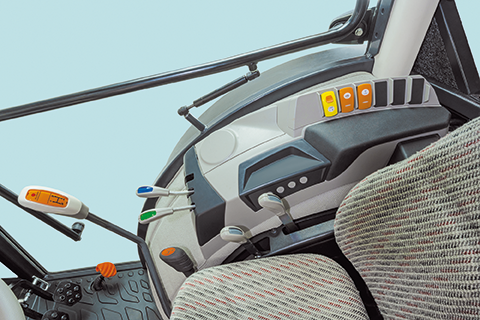

Featuring an Italian-style driving position mounted on a lowered platform for greater operating comfort, the F tractor is available both in ROPS and cab configurations. High-visibility four-post cab with climate control, radio system and opening front and rear windows for greater safety and year-round comfort.
x
Hydraulic system

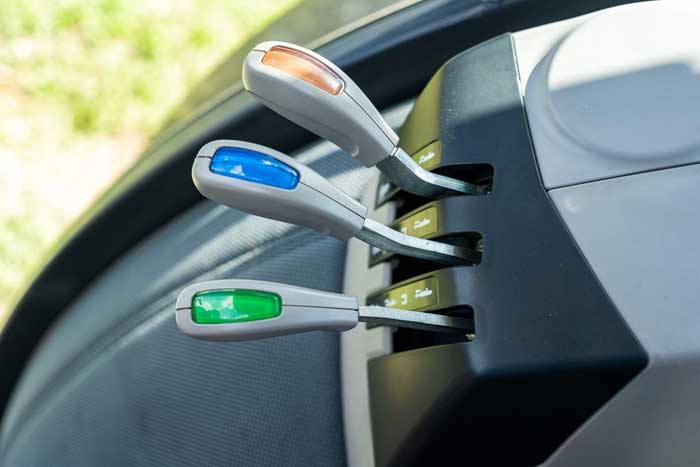

The hydraulic system supplies 60 l/min to the hitch and remotes and 30 l/min to the steering system. A 30-litre oil take-out capacity is available for operating heavy implements. The F tractor comes standard with a three-speed PTO, up to three remote valves, and a rear hitch lifting up to 2700 kg.
All the accessories and features that make this tractor unique and irreplaceable.
