X5 Tier 5 Series
New engines and even better performance

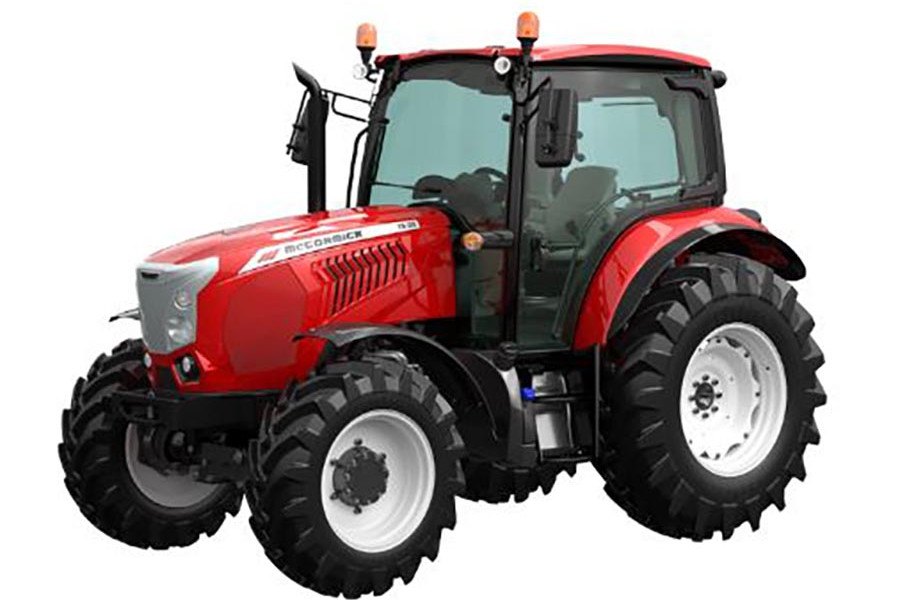

For customers in search of power and comfort, McCormick offers the new X5 range, ideal for open field and round the farm work. There are three models available: the X5.100, X5.110 and X5.120, which respectively deliver maximum power outputs of 95, 102 and 114 HP. The range is offered in two different trim levels: Premium, which is intended to completely satisfy all the customers’ needs, and Efficient, which offers entry-level specifications.
95 102 114
Speed Four & Xtrashift

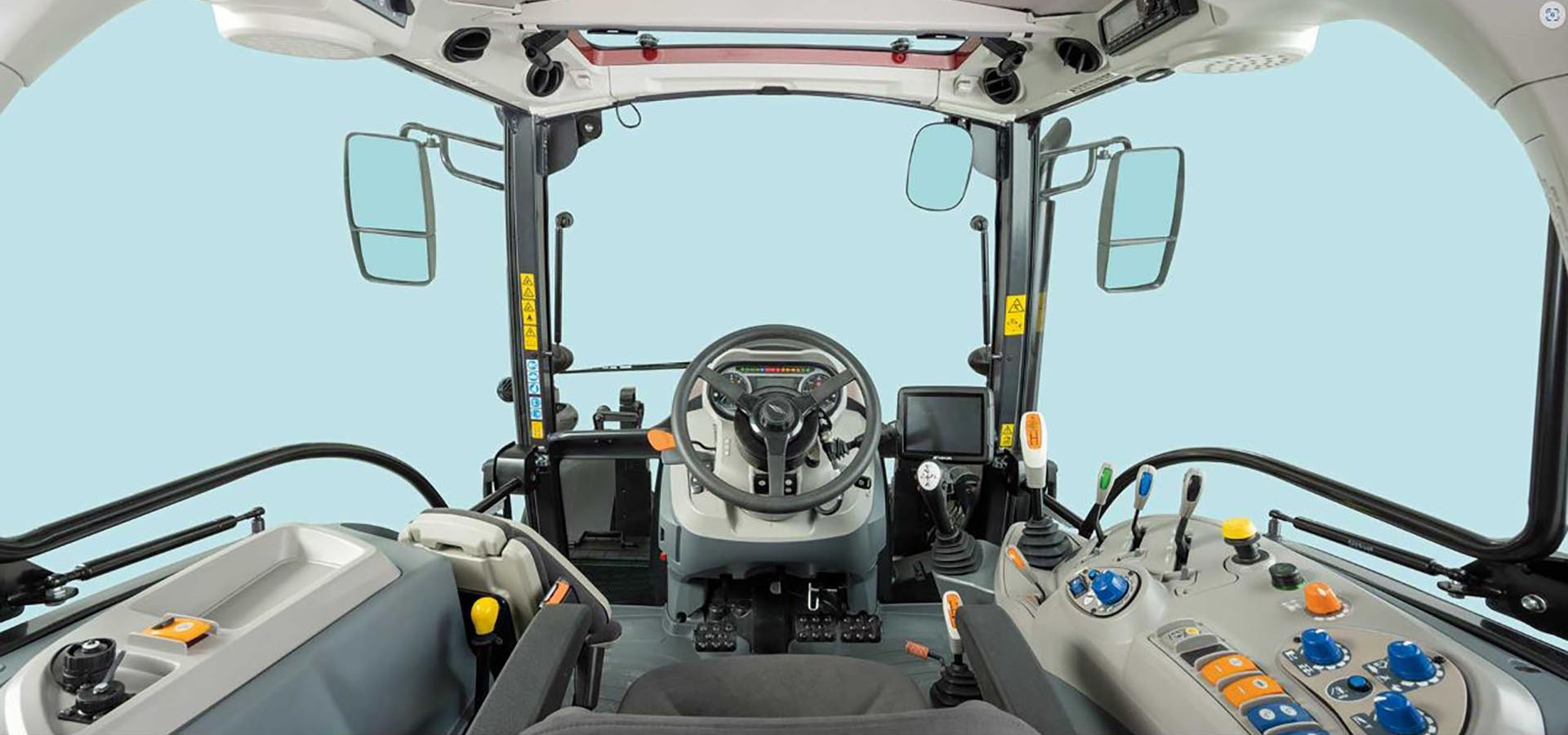

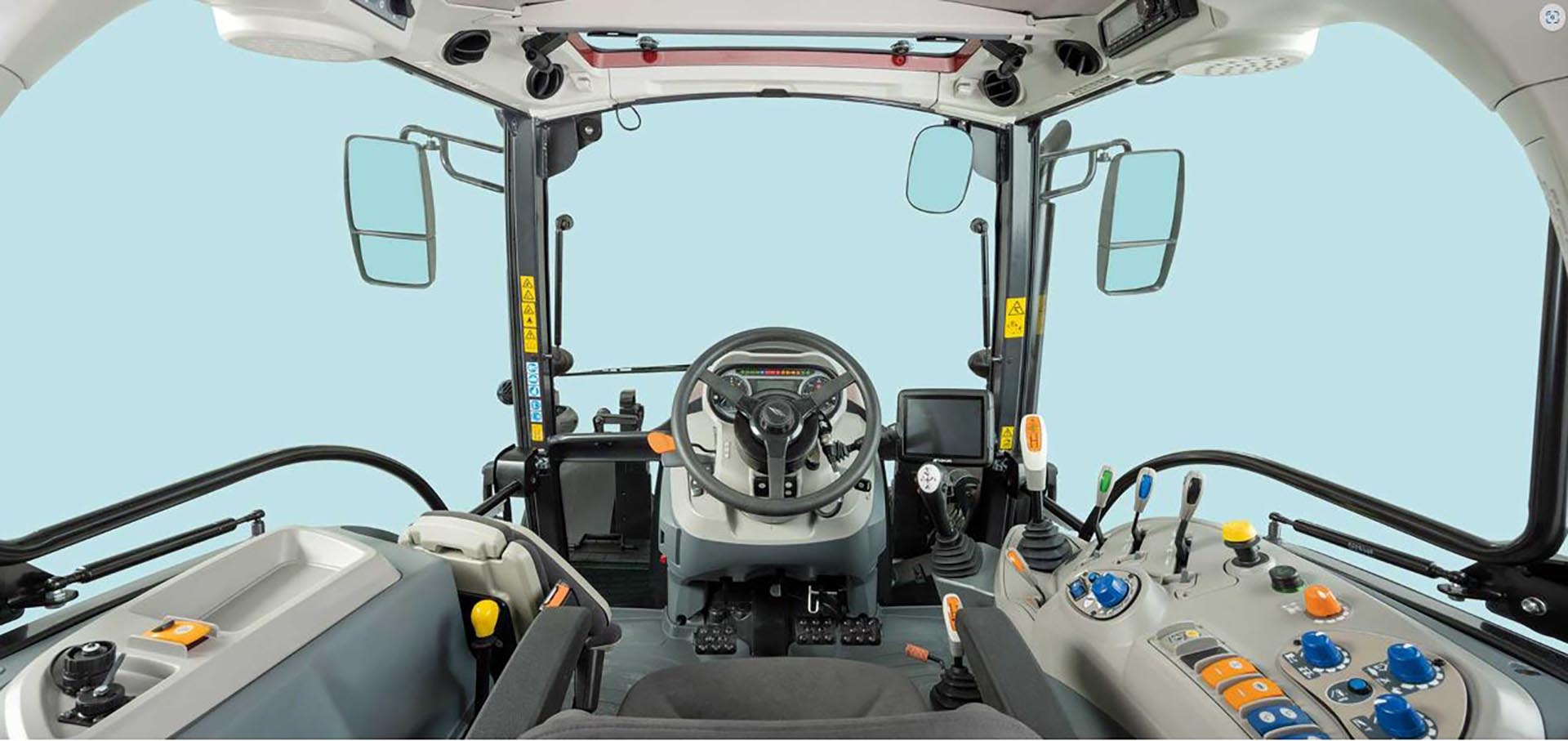

The driving comfort for the operator has been improved thanks to the suspended front axle option which, combined with the new mechanically-suspended cab, allows the vehicle to better tackle uneven terrain, while at the same time providing greater safety and comfort under all working conditions. Thanks to its 4-pillar structure, the Total View Slim cab offers a maximised glazed area in order to provide a 360° field of vision, thus facilitating work in tight spaces, even at night thanks to the new LED lights (up to 10). The transparent hatch also provides greater visibility when using the front loader.
Boasting a captivating design and functional instrumentation, the cab’s interior features a perfect automotive-style appearance, with excellent air conditioning. The features include a reclining and telescopic steering wheel, ergonomic and intuitive controls, and a DAB and Bluetooth radio with a built-in hands-free microphone.
The new FPT F36 4-cylinder, 16-valve, 3.6-litre, Turbo Intercooler engines with Common Rail electronic injection are equipped with EGR/DOC/DPF/SCR technology. The exhaust gas treatment system is integrated under the bonnet, thus ensuring maximum visibility from the driver’s seat.
The diesel tank’s capacity has been increased to 135 litres, with an AdBlue® tank of 13 litres, thus ensuring greater daily performance with a 10% reduction in fuel consumption and decreased emissions.
|Max power (ISO/TR 14396) CV/kW||95,2/70||102/75||114/84|
|Max torque at 1400 rpm Nm||395||430||460|
|Cylinders/Displacement/Valves||4/ 3,6L/ 16||4/ 3,6L/ 16||4/ 3,6L/ 16|

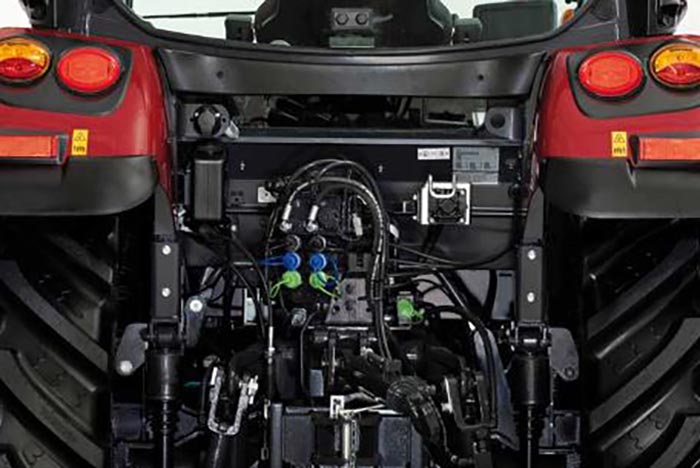

It features up to 6 hydraulic spool valves, of which 3 are mechanically controlled and 1 is electrically controlled and, as an option, 2 can be mid-mounted for front hitch and front loader purposes, which can even be combined together. There are four spool valves: standard, kick-out, floating and hydraulic motor, with versatile and customisable configurations. The optional flow selector allows managing up to 7 hydraulic connectors.
|Max weight over cab without beacon lights mm||2623 - measured with tires 380/70R24 - 480/70R34||2623 - measured with tires 380/70R24 - 480/70R34||2623 - measured with tires 380/70R24 - 480/70R34|
|Standard weight measured with average specs Kg||4000||4000||4000|
|Gross vehicle weight Kg||7000||7000||7000|
|Max front and rear tire size - (index radius IR) mm||380/70R24 - 480/70R34 (RI 750 mm)||380/70R24 - 480/70R34 (RI 750 mm)||380/70R24 - 480/70R34 (RI 750 mm)|
