Richer in features and with a more European design

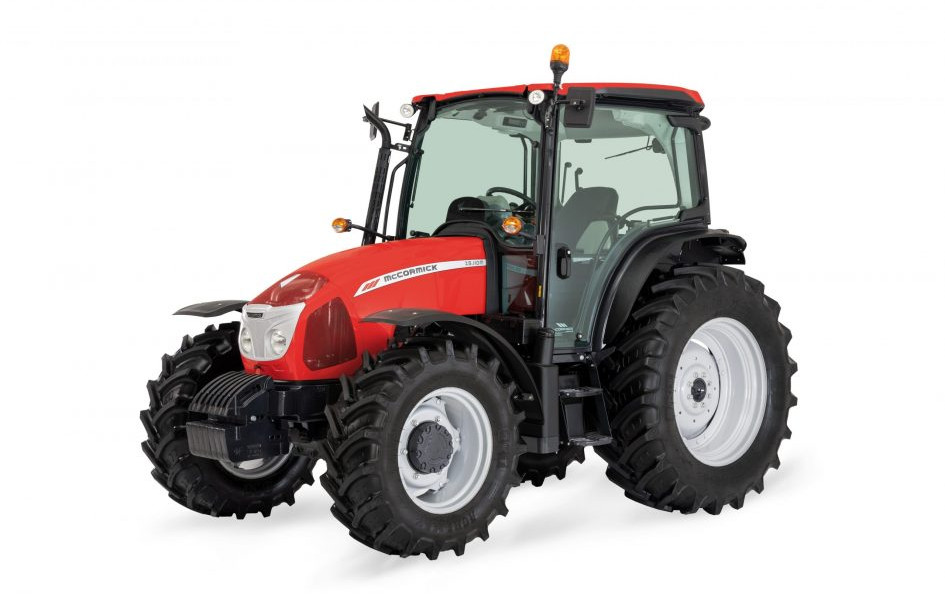

Richer in features and with a more European design: this is how the new McCormick X5M range, the other novelty from Argo Tractors. Particular care has been put into the design, starting with the hood, which takes on a more modern look.
92.5, 101.9, 110.6
Mechanical with Synchro Shuttle and Power Shuttle
Significant innovations have been introduced in the field of transmissions, which are available in various configurations and also with hydraulic reverse shuttle, as well as an optional 60 litre hydraulic capacity and a completely new look for the cab.

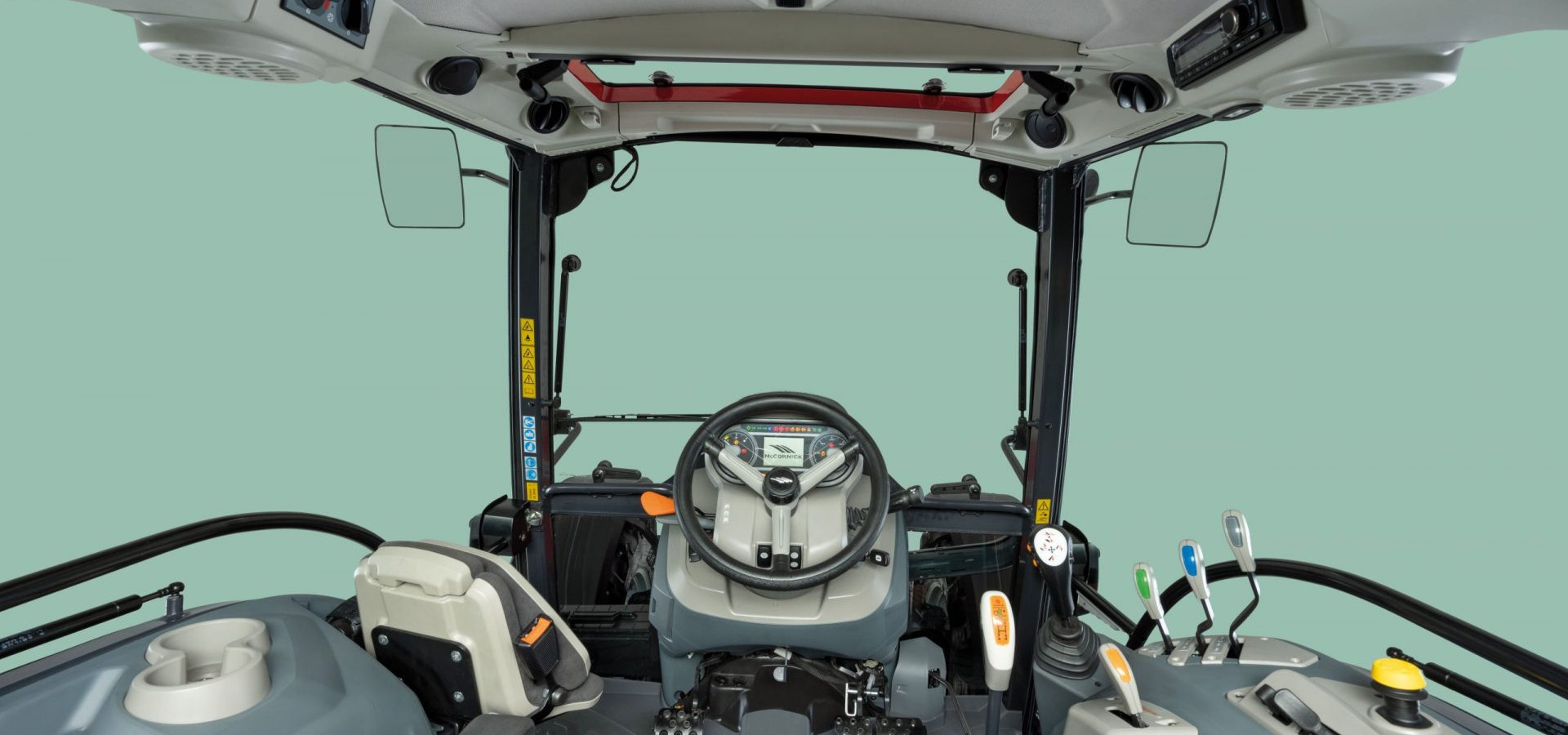

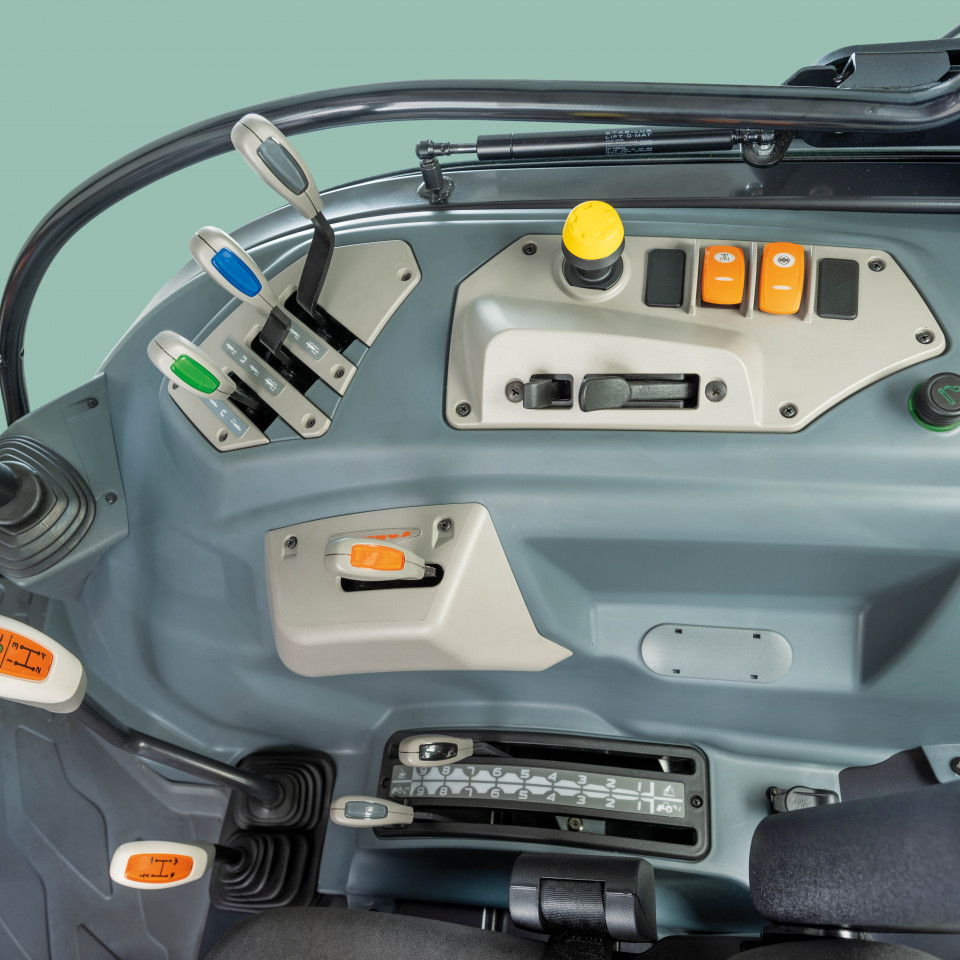

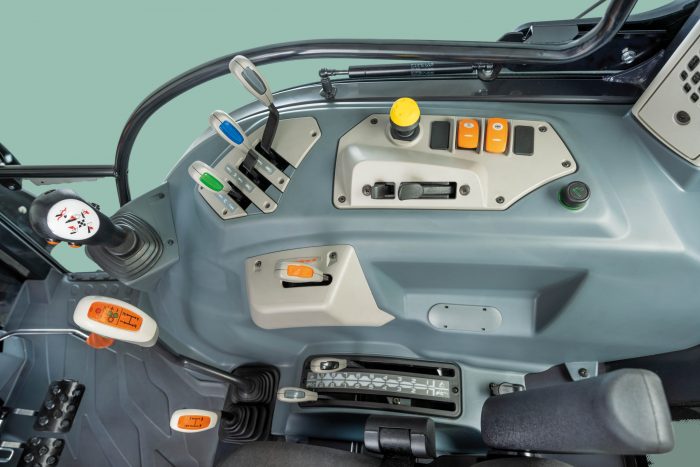

The cab features a European style, is completely renewed with particular attention given to the total space, to the ergonomics of the driver’s seat, to the controls and to the total visibility provided by the 4 pillars structure.

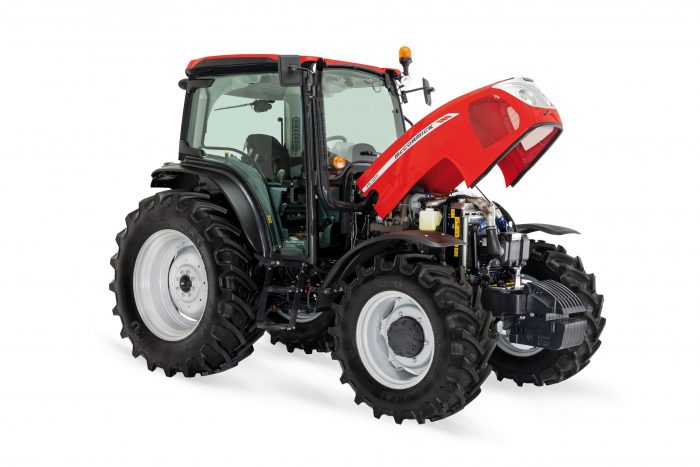

The Tier3 Perkins 1104D 4.4 L turbo aftercooled engine is unchanged from the previous series, with power ranging from 93 to 110 hp for the three models 100M, 110M and 120M.
|Max. power (ISO), hp/kW||92.5/68||101.9/74.9||110.6/81|
|Max. torque at 1400 rpm - Tier 3A Nm||363||416||416|
|Rated engine speed rpm||2200||2200||2200|
|Cylinders/Displacement/Valves||4 / 4.4 / 16||4 / 4.4 / 16||4 / 4.4 / 16|
|Fuel tank L||120||120||120|
The strong point of the series is the transmission, available in the basic 12+12 speed version (at 40 km/h) or 16+16 (with Creeper), in Syncro Shuttle and 12+12 Power Shuttle (oil cooled clutch). Also available as an option are versions with a three powershift combined hydraulic reverse shuttle (H-M-L) that triple the gears of the basic transmission, providing a total of 36 forward and 12 reverse gears and 48+16 with HML and Creeper.
The hydraulic capacity that assists the rear hitch and spool valves of 52 litres (basic) acquires as a novelty the option to 60 litres. The pump dedicated to steering offers a good 30 l/m. The rear hitch capacity is increased to a maximum of 4500 kilograms (with two additional cylinders) with electronic hitch control available as an option.
|Max height over cab without beacon lights mm||2620 - measured with tires 320/70R24 - 480/70R34 (IR 750mm)||2620 - measured with tires 320/70R24 - 480/70R34 (IR 750mm)||2620 - measured with tires 320/70R24 - 480/70R34 (IR 750mm)|
|Standard weight measured with average specs Kg||3800||3800||3800|
|Gross vehicle weight kg||6500||6500||6500|
|Max front and rear tire size - (Index Radius - IR) mm||320/70R24 - 480/70R34 (IR 750mm)||320/70R24 - 480/70R34 (IR 750mm)||320/70R24 - 480/70R34 (IR 750mm)|
