McCormick C-Max Cab/Plat T0-T3

90 - 100 - 110

Main features

CYLINDERS
4
POWER
83, 92.5, 102
TRANSMISSION
Synchro Shuttle

so simple, so efficient

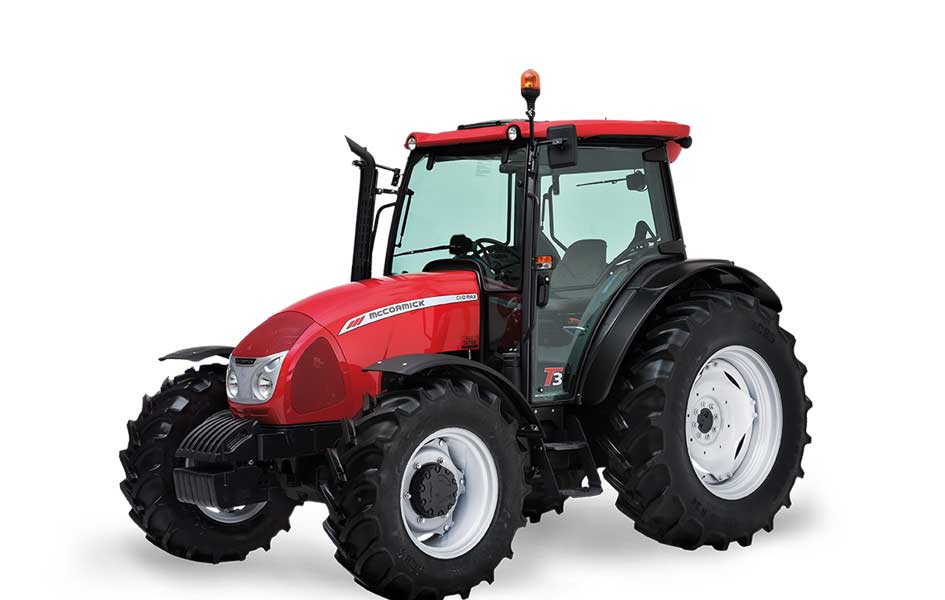

The new C-Max series is a range of simple and modern tractors. Available in both platform and cab versions, the C-Max tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 74, 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The C-Max 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO.  The C-Max also offers a high-clearance version (HC) for both the two- and four-wheel drive models. Rotating the rear drop-down final drives and using special front axles and tall, narrow tyres result in higher belly clearance, making this tractor ideal for working in specialty crops such as rice fields and interrow crops.




PERKINS DIRECT-INJECTION ENGINE

The C-Max tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. The C-Max 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO. The hood, fully restyled to reflect the new family styling, provides unobstructed view in all directions and opens wide to provide easy access to the engine compartment for service and maintenance.

  C110 MAX

C90 MAX

C100 MAX C110 MAX
  TIER 0 TIER 3 TIER 3 TIER 3
PERKINS DIRECT-INJECTION ENGINE  1104A-44T 1104D-44 1104D-44TA 1104D-44TA
MAX. POWER ISO HP/KW 106.8/78.5 83 / 61 92,5 / 68 102 / 75
MAX. TORQUE NM 400 352 363 416
DISPLACEMENT/NR. OF CYLINDERS cm3 4400/4 TURBO 4400/4 TURBO 4400/4 TURBO AFTERCOOLER 4400/4 TURBO AFTERCOOLER
FUEL TANK CAPACITY LTR 102 102 102 102

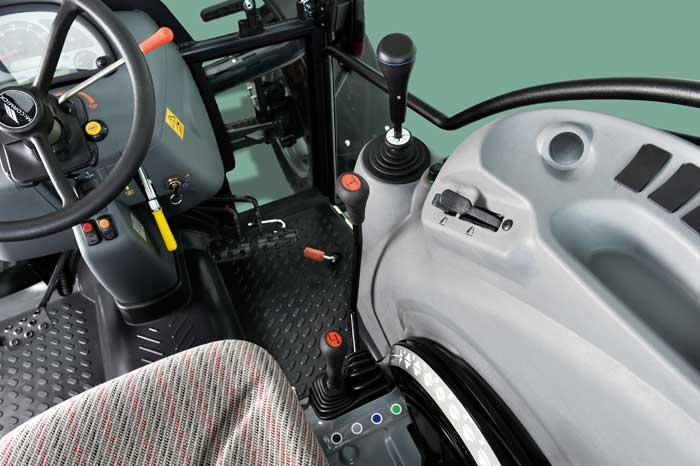

Synchro Shuttle transmission

The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models.

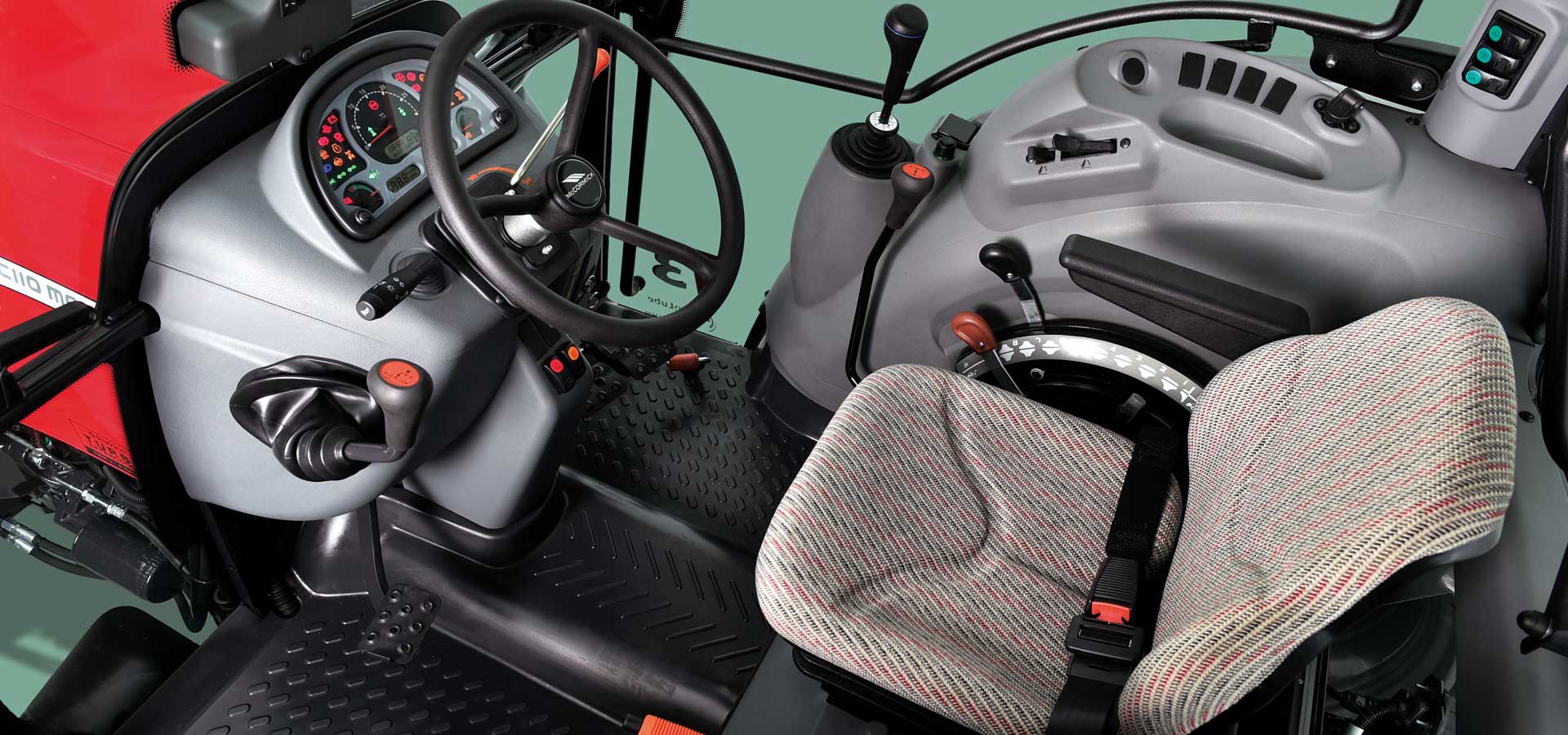

Cab "Deluxe"

The fully-glazed Deluxe cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the C-Max range is designed for productivity, versatility and comfort.

dimensions and weights



 C110 MAX (T0)

STD

C90 MAX (T3)

STD              HC

C100 MAX (T3)

STD        HC

C110 MAX (T3)

STD              HC

FRONT TYRES 4WD 12.4-24 12.4-24 13.6-24 380/70 R24
REAR TYRES 16.9-30 16.9-30 16.9-34 480/70 R34
A – LENGTH (WITH BALLAST WEIGHT) MM 4136 4136 4136 4160
B – MIN. WIDTH MM 1945 1945 2034 2110
C – FRONT TRACK ADJUSTMENT 4WD MM 1553-1954 1608-1954 1540-1967 1740-2167
C – REAR TRACK ADJUSTMENT MM 1508-1908 1515-2008 1612-2012 1612-2012
D – WHEELBASE 2WD/4WD MM 2365-2340 2341/2316   2255/2230  2341/2316   2255/2230 2365/2340   2255/2230
E – HEIGHT OVER CAB MM 2518 2518 2558 2563
F – GROUND CLEARANCE 4WD MM 425 425 475 475
WEIGHT (WITHOUT BALLAST WEIGHTS) 4WD + (150KG CAB) KG 3450 3330   3460 3330   3460 3450   3500
